Center Splash Shield Removal/Installation: RH

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle.
  2. Remove the fasteners.

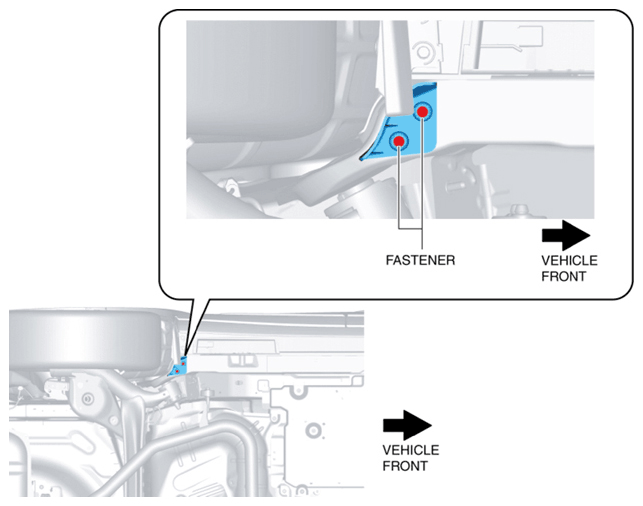

    Fig 1: Removing Center Splash Shield Fasteners (RH)
    G10914608Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
