Rear Door Lock-Link Switch Inspection: LH

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Fully lower the rear door glass.
Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Power window subswitch (Refer to POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
2. Rear door trim (Refer to REAR DOOR TRIM REMOVAL/INSTALLATION .)
3. Rear inner handle (Refer to INNER HANDLE REMOVAL/INSTALLATION .)
4. Rear door latch and lock actuator (Refer to REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
If the door lock condition is to be inspected, pull the door lock knob cable, or press it in.
Verify that the continuity is as indicated in the table.

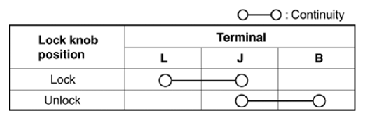

Fig 1: Rear Door Lock-Link Switch Terminals Continuity Chart (LH)
Courtesy of MAZDA MOTORS CORP.

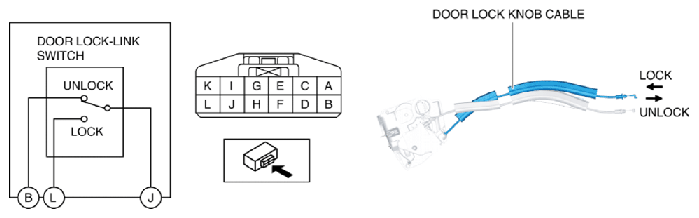

Fig 2: Inspecting Rear Door Lock-Link Switch Terminals (LH)
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the rear door latch and lock actuator. (Refer to REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
