Rear Seat Cushion Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When performing the procedure with a rear seat cushion removed from the vehicle, perform the procedure on a clean cloth so as not to damage or dirty the seat.

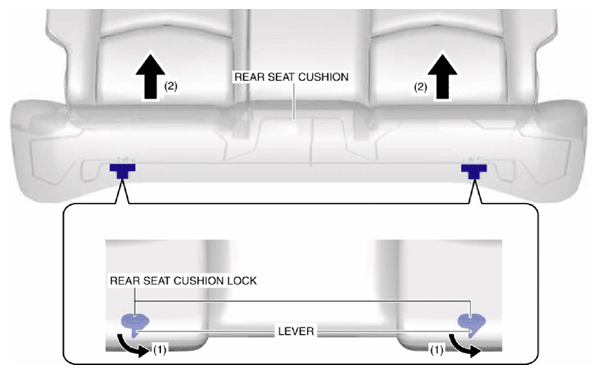

While moving the rear seat cushion lock levers in the direction of arrows (1) shown in the figure, lift up the rear seat cushion in the direction of arrows (2) and detach the rear seat cushion lock from the rear seat cushion.

Fig 1: Lifting Up Rear Seat Cushion
Courtesy of MAZDA MOTORS CORP.

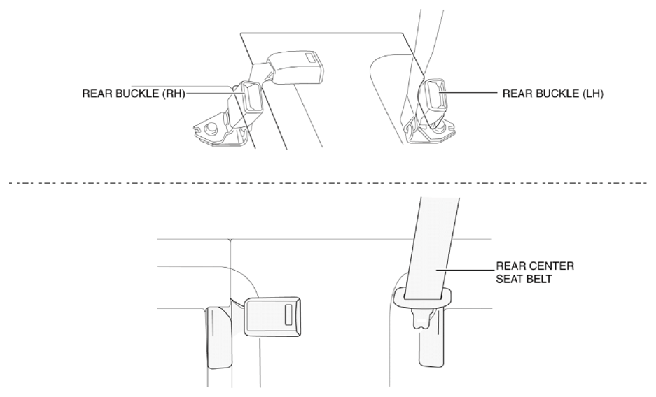

Verify that the rear buckles are located as shown in the figure.

Fig 2: Checking Rear Buckles Position
Courtesy of MAZDA MOTORS CORP.

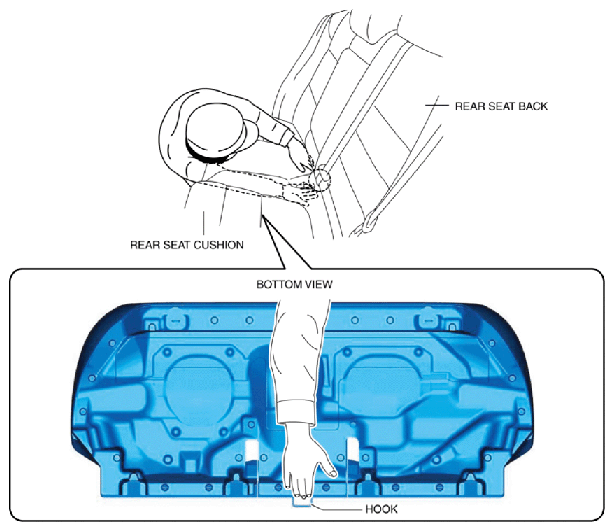

Insert your right hand into the position where the hook can be felt from the underside of the rear seat cushion in the posture shown in the figure, and insert your left hand between the rear seat cushion and the rear seat back.

Fig 3: Inserting Left Hand Between Rear Seat Cushion And Rear Seat Back
Courtesy of MAZDA MOTORS CORP.

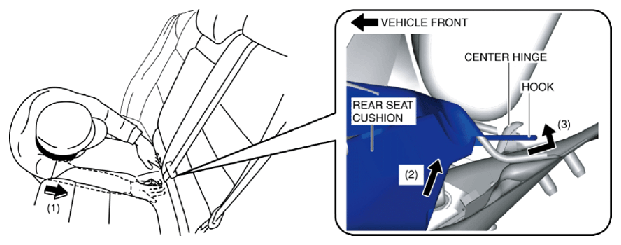

While pressing the rear seat cushion in the direction of arrow (1) shown in the figure, lift up the hook in the direction of arrow (2), move it in the direction of arrow (3), and detach it from the center hinge.

Fig 4: Pressing Rear Seat Cushion
Courtesy of MAZDA MOTORS CORP.
Remove the rear seat cushion.
Install in the reverse order of removal. (See REAR SEAT CUSHION INSTALLATION NOTE .)
