Bolt Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Install the bolts in the order shown in the figure.

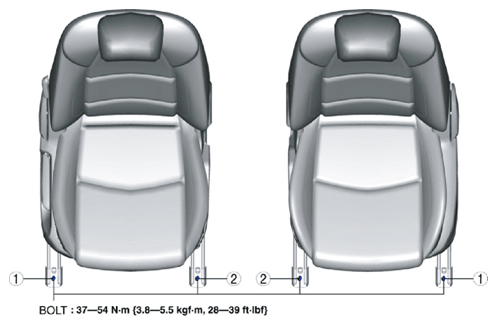

Fig 1: Identifying Front Seat Bolts With Torque Specification (Lower)
Courtesy of MAZDA MOTORS CORP.

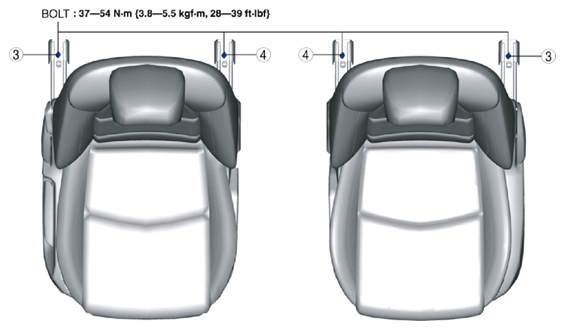

Fig 2: Identifying Front Seat Bolts With Torque Specification (Upper)
Courtesy of MAZDA MOTORS CORP.
