Rear Scuff Plate Removal/Installation: Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

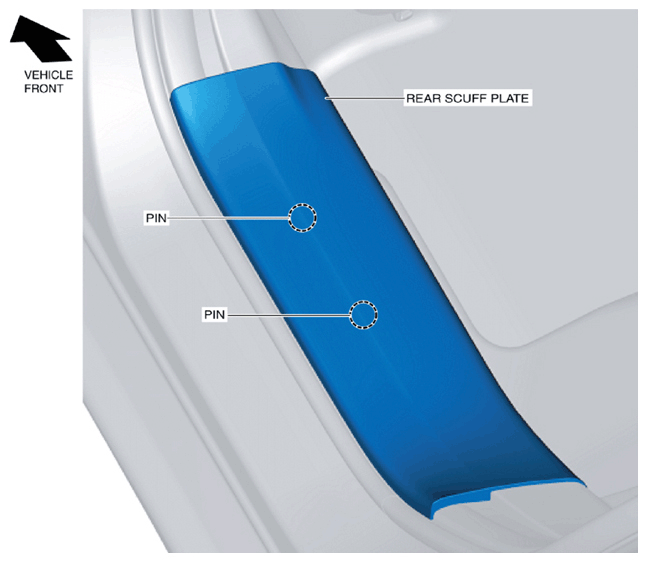

  1. Align the rear scuff plate pins shown in the figure with the inner panel.
    Fig 1: Identifying Rear Scuff Plate And Pins
    G10914799Courtesy of ABLE BODY CORP.

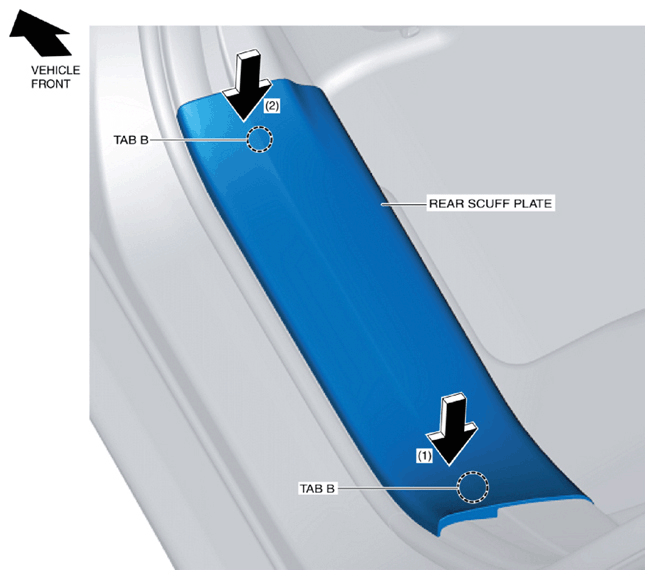

  2. Press the rear scuff plate in the direction of arrow (1) shown in the figure and install tabs B to the trunk side trim.
    Fig 2: Pressing Rear Scuff Plate
    G10914800Courtesy of ABLE BODY CORP.
  3. Press the rear scuff plate in the direction of arrow (2) shown in the figure and install tabs B to the B-pillar lower trim.

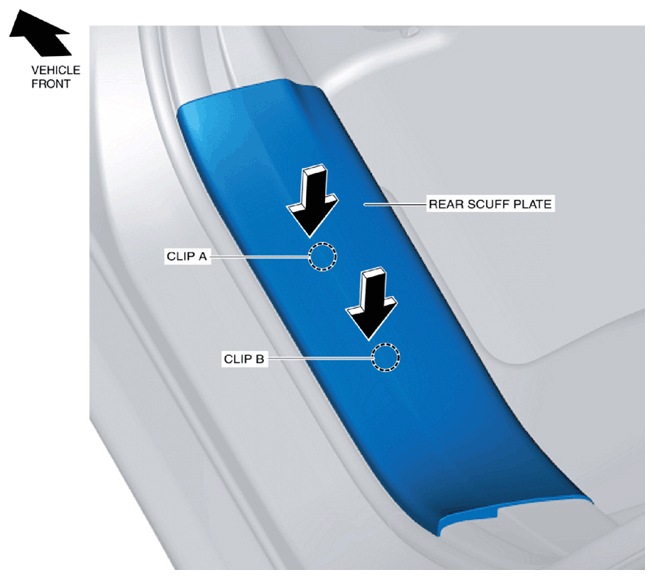

  4. Press the rear scuff plate in the direction of the arrows shown in the figure and install clips A and B to the inner panel.
    Fig 3: Installing Clips A And B To Inner Panel
    G10914801Courtesy of ABLE BODY CORP.

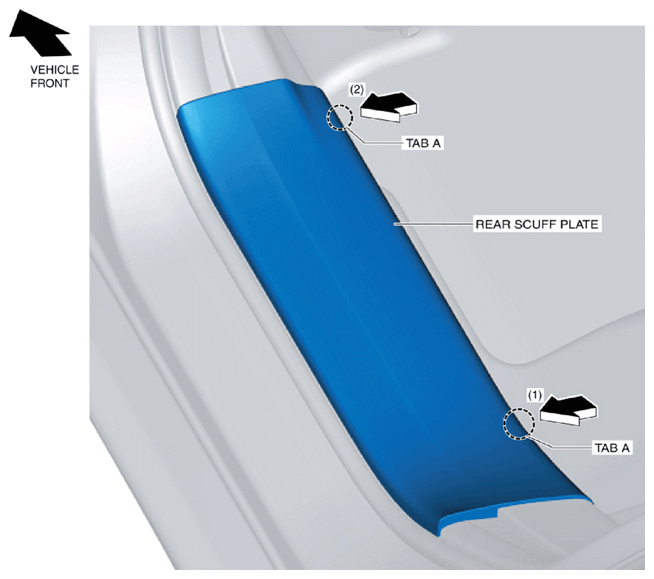

  5. Press the rear scuff plate in the direction of arrow (1) shown in the figure and install tabs A to the trunk side trim.
    Fig 4: Installing Tabs A To Trunk Side Trim
    G10914802Courtesy of ABLE BODY CORP.
  6. Press the rear scuff plate in the direction of arrow (2) shown in the figure and install tabs A to the B-pillar lower trim.
