Foot Support Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Passenger-side side wall (Refer to SIDE WALL REMOVAL/INSTALLATION .)
    2. Passenger-side front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Passenger-side front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side front heat duct (Refer to FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  2. Partially peel back the floor covering.
  3. Remove the fastener.

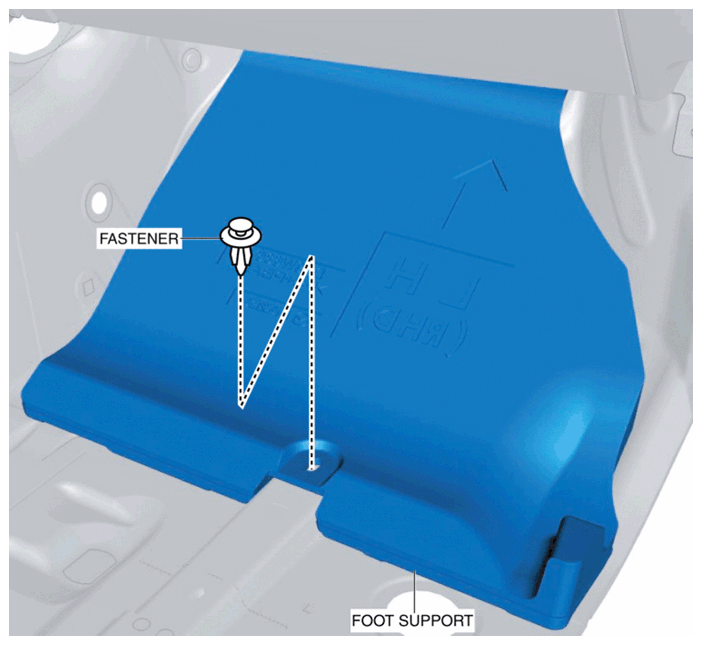

    Fig 1: Identifying Foot Support Fastener
    G10914853Courtesy of ABLE BODY CORP.
  4. Pull the foot support in the direction of the arrow and remove it.

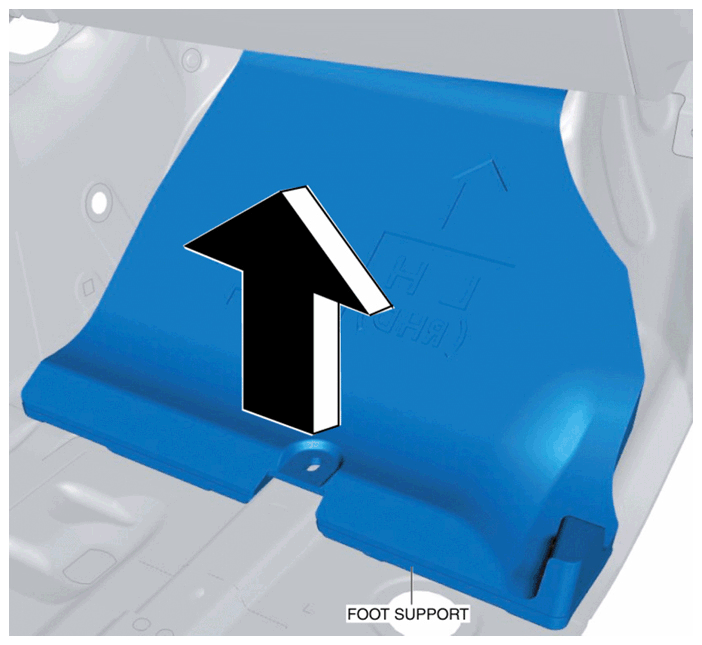

    Fig 2: Pulling Foot Support
    G10914854Courtesy of ABLE BODY CORP.
  5. Install in the reverse order of removal.
