Console Side Panel No. 1 Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. While detaching the hooks shown in the figure, remove the console side panel No. 1 from console side panel No. 2.

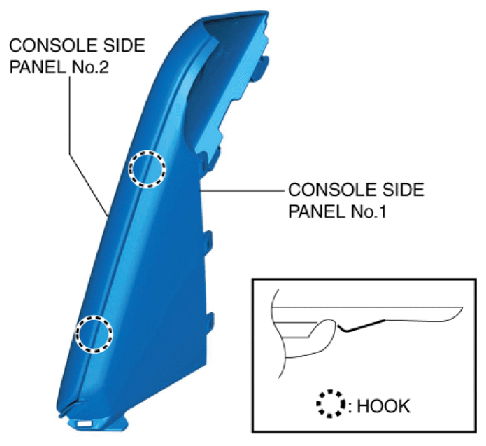

    Fig 1: Identifying Console Side Panel No. 1 And 2 With Hooks
    G10914765Courtesy of ABLE BODY CORP.
