Assist Handle Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Insert a remover tool into the service hole and remove the assist handle covers.

Fig 1: Removing Assist Handle Covers
Courtesy of ABLE BODY CORP.

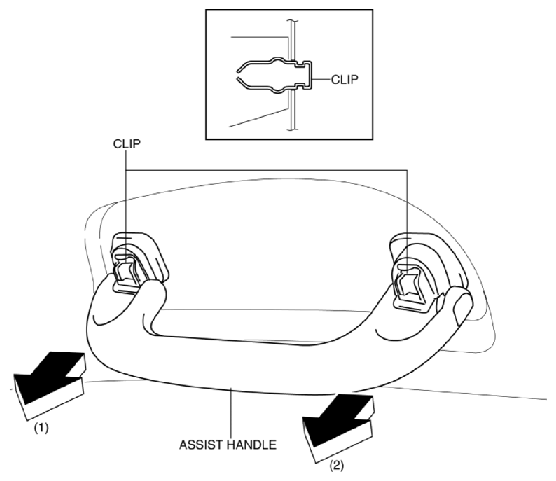

Remove the assist handle in the direction of the arrow (1) and (2), while detaching the clips.

Fig 2: Removing Assist Handle
Courtesy of ABLE BODY CORP.
NOTE:
- Remove the assist handle by shaking it up and down.
