Weatherstrip Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Install the weatherstrip to the glass panel with the joint part of the weatherstrip assembled to the vehicle rear side.

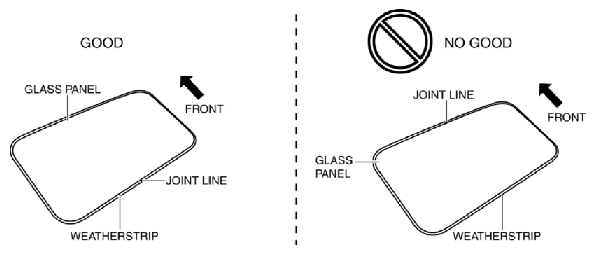

Fig 1: Caution For Installing Weatherstrip To Glass Panel With Joint Part
Courtesy of MAZDA MOTORS CORP.
