Clip Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Pull out the pin with flathead screwdriver as shown in the figure.

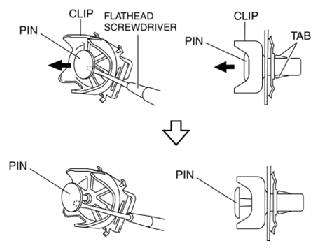

Fig 1: Pulling Out Pin With Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into the positions of the arrows shown in the figure.

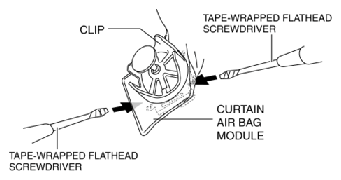

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Curtain Air Bag Module
Courtesy of MAZDA MOTORS CORP.
While pulling the curtain air bag in the direction of the arrow shown in the figure (1), detach tabs by prying with a flathead screwdriver in the direction of the arrow (2) (3).

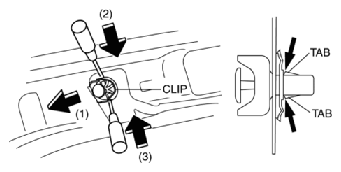

Fig 3: Detaching Tabs With Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Remove the clip from the body.
