Clock Spring Adjustment

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Set the front wheels straight ahead.
CAUTION:
- The clock spring will break if over-wound. Do not forcibly turn the clock spring.
Turn the clock spring clockwise until it stops.

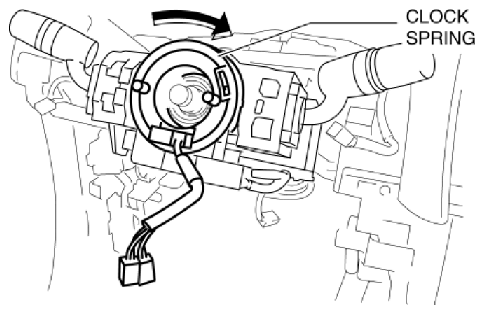

Fig 1: Turning Clock Spring Clockwise
Courtesy of MAZDA MOTORS CORP.
From the stopped position, turn the clock spring counterclockwise approx. 2 turns .

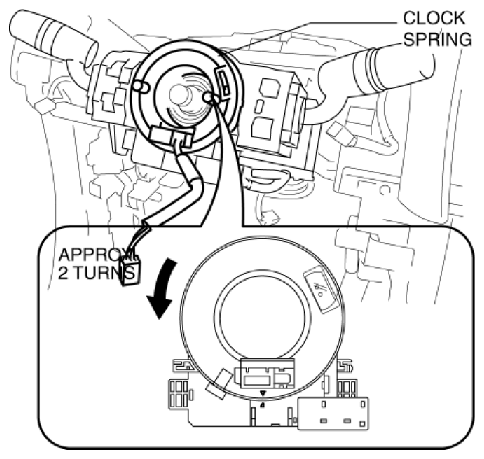

Fig 2: Turning Clock Spring Counterclockwise
Courtesy of MAZDA MOTORS CORP.
Align the mark on the clock spring with the mark on the outer housing.

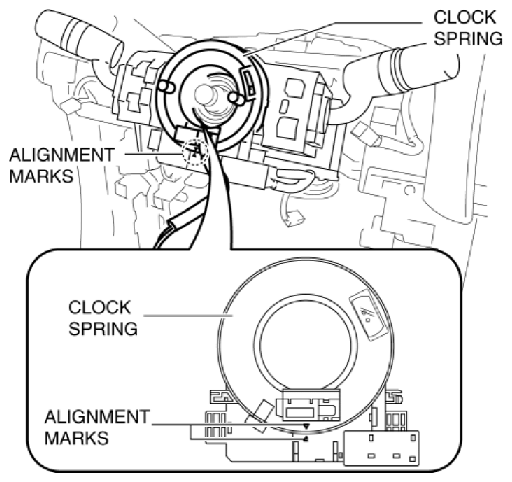

Fig 3: Identifying Alignment Mark On Clock Spring (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

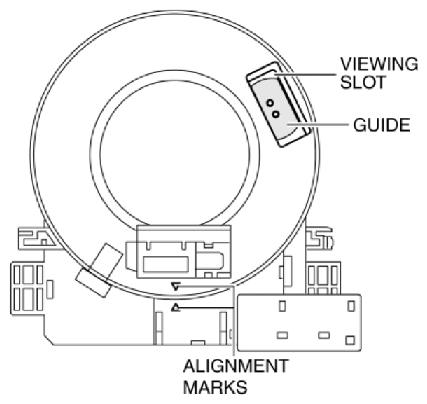

Fig 4: Identifying Alignment Mark On Clock Spring (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
NOTE:
- After adjusting the alignment marks, the guides can be verified in the viewing slots shown in the figure.
