Fuel Tank Side
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
U.S.A. and CANADA specs.

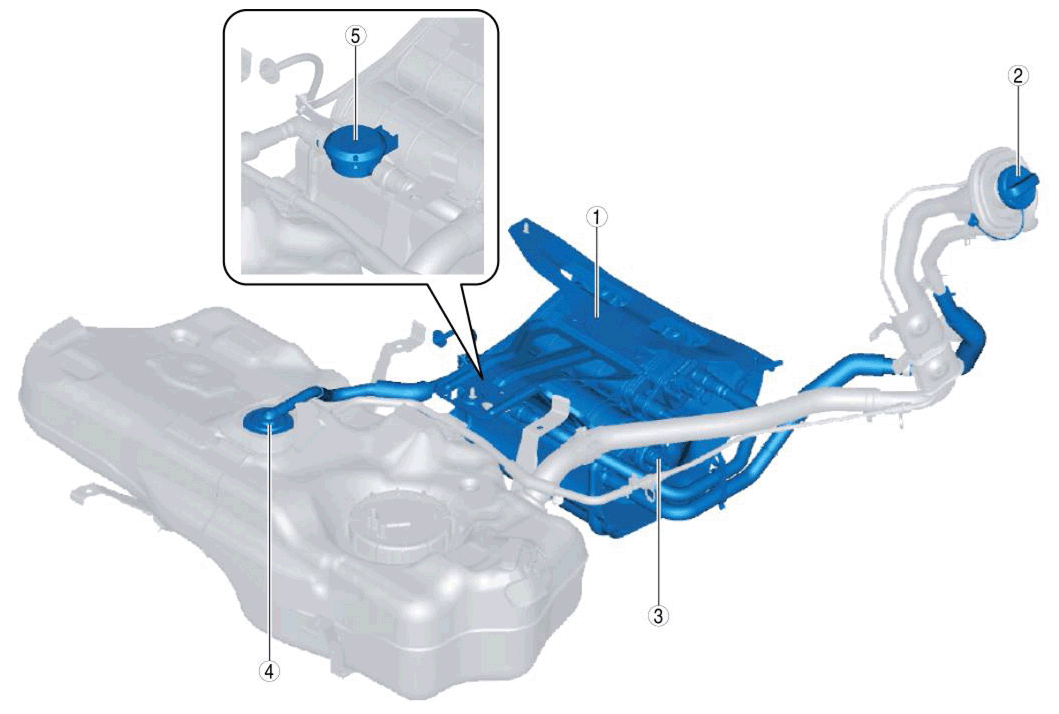

2WD

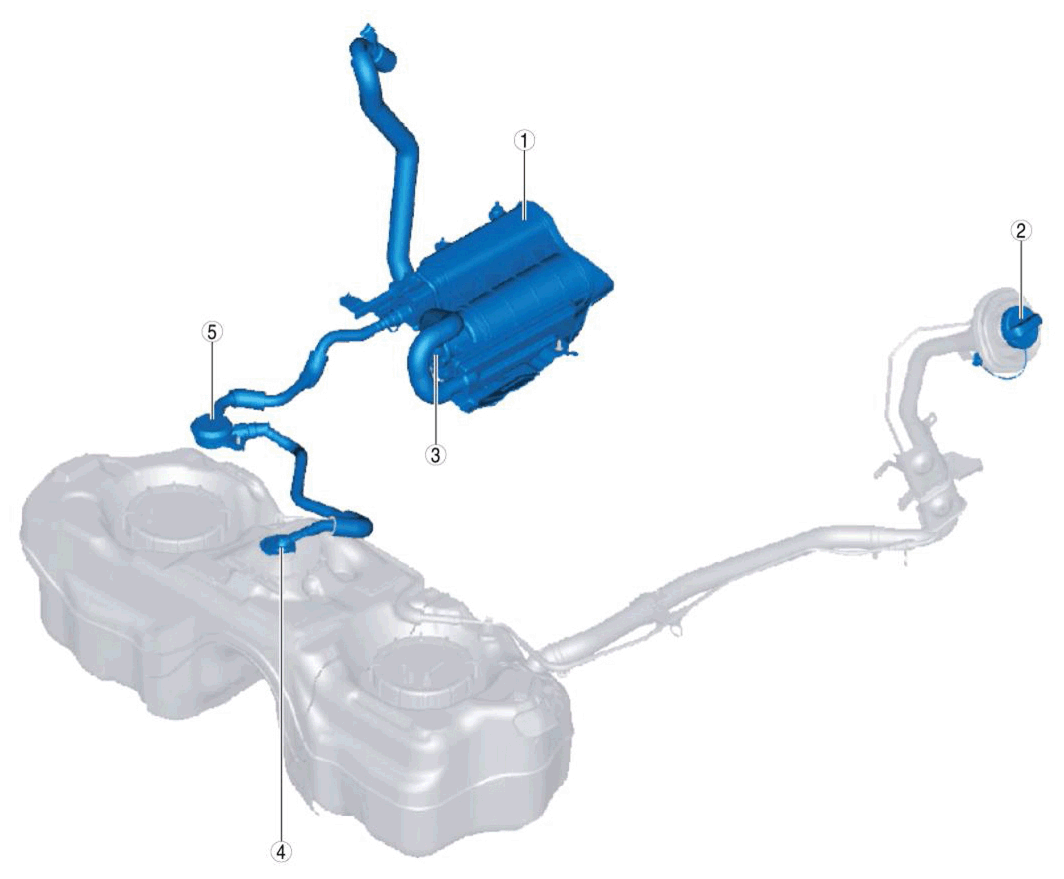

AWD
COMPONENT DESCRIPTION
| 1 | Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION .) (See CHARCOAL CANISTER INSPECTION .) |
| 2 | Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION .) |
| 3 | CV solenoid valve (See CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION .) (See CANISTER VENT (CV) SOLENOID VALVE INSPECTION .) |
| 4 | Rollover valve (check valve) (See ROLLOVER VALVE REMOVAL/INSTALLATION .) (See ROLLOVER VALVE INSPECTION .) (See CHECK VALVE REMOVAL/INSTALLATION .) (See CHECK VALVE INSPECTION .) |
| 5 | Pressure control valve (See PRESSURE CONTROL VALVE INSPECTION .) |
