Oil Pump Driven Sprocket Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Lock the oil pump against rotation as shown in the graphic.

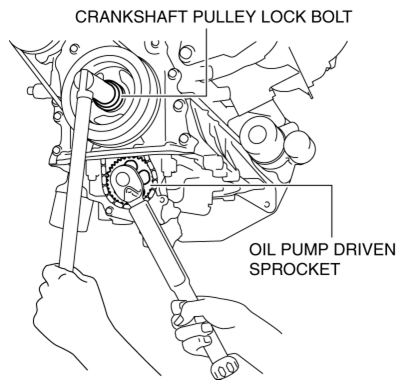

Fig 1: Installing Oil Pump Driven Sprocket
Courtesy of MAZDA MOTORS CORP.
Install the oil pump driven sprocket.
Tightening Torque
- 20-30 N.m {2.1-3.0 kgf.m, 15-22 ft.lbf}
