Engine Oil Solenoid Valve Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

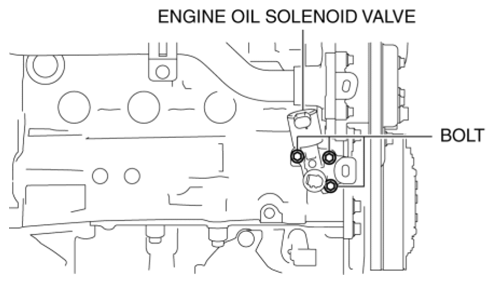

- After tightening the three bolts shown in the graphic, tighten the first tightened bolt to the specified tightening torque again.
NOTE:
- The tightening order for the three bolts is optional.
Tightening Torque- 12-16 N.m {123-163 kgf.cm, 107-141 in.lbf}
