On-Board Diagnostic - Engine Control - Introduction (1 Of 2)
>>
Foreword
>>

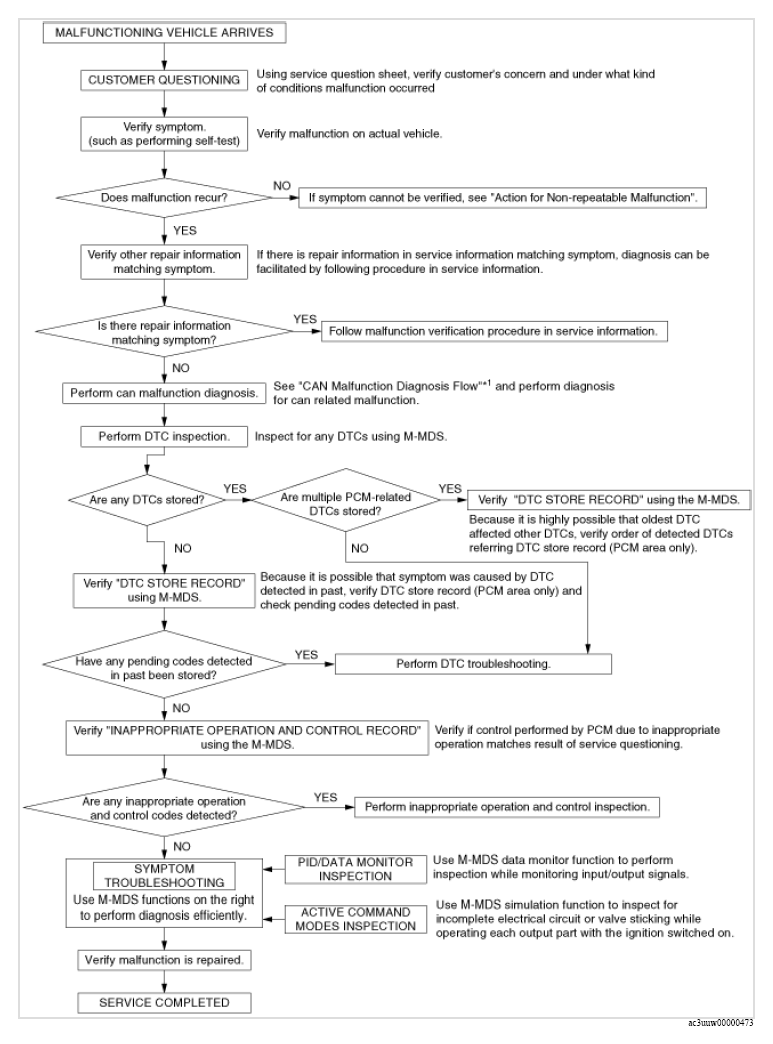

Troubleshooting Procedure
Troubleshooting Procedure
Courtesy of MAZDA MOTORS CORP.
*1:(See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
