DTC P06DA-00: Engine Oil Solenoid Valve Circuit Problem: Notes

DTC P06DA:00 DETECTION CONDITION AND POSSIBLE CAUSE

DTC P06DA:00	Engine oil solenoid valve circuit problem
DETECTION CONDITION	The engine oil solenoid valve control current is high or the control voltage at the PCM terminal 1AS is low relative to the PCM control condition. Diagnostic support note  This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA is not available. Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Inhibits the engine oil control.

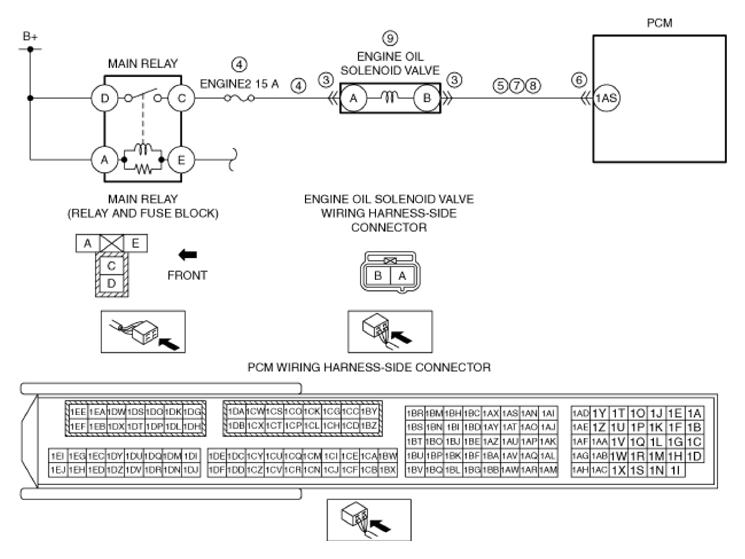

POSSIBLE CAUSE	Engine oil solenoid valve connector or terminals malfunction Short to ground or open circuit in engine oil solenoid valve power supply circuit Short to ground in wiring harness between ENGINE2 15 A fuse and engine oil solenoid valve terminal A ENGINE2 15 A fuse malfunction Open circuit in wiring harness between main relay terminal C and engine oil solenoid valve terminal A Short to ground in wiring harness between engine oil solenoid valve terminal B and PCM terminal 1AS PCM connector or terminals malfunction Short to power supply in wiring harness between engine oil solenoid valve terminal B and PCM terminal 1AS Open circuit in wiring harness between engine oil solenoid valve terminal B and PCM terminal 1AS Engine oil solenoid valve malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
