Except U.S.A. and CANADA Specs.: Notes

2WD

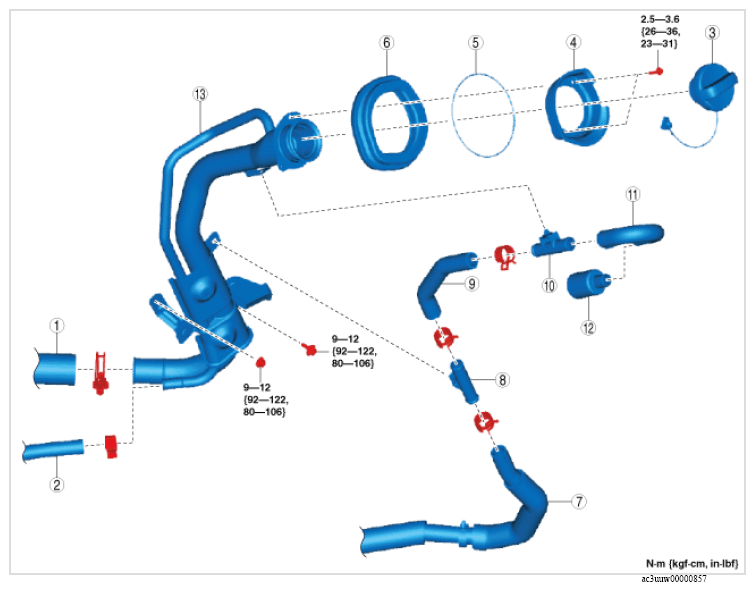

Fig 1: Fuel-Filler Pipe (2WD) Components With Torque Specification (Except U.S.A. And Canada Specs)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Joint hose (See Joint Hose Installation Note .)
2	Breather hose No. 1 (See Breather Hose No. 1 Installation Note .)
3	Fuel-filler cap
4	Protector
5	O-ring
6	Dust cover
7	Evaporative hose
8	Joint No. 1
9	Hose No. 1
10	Joint No. 2
11	Hose No. 2
12	Plug
13	Fuel-filler pipe

AWD

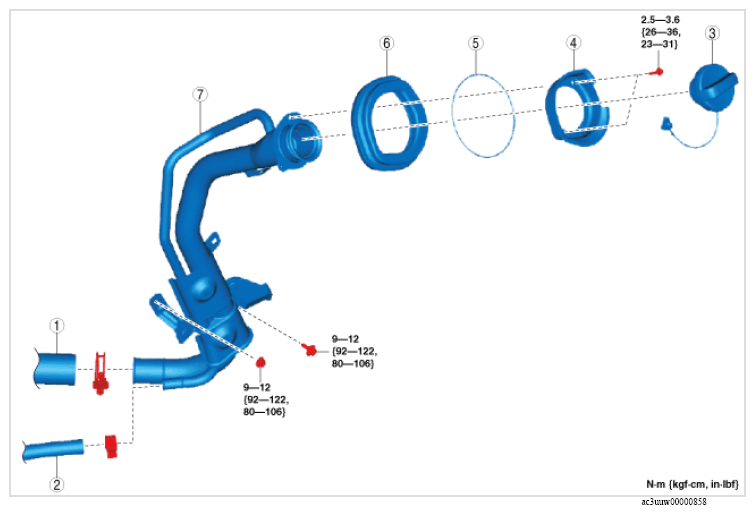

Fig 2: Fuel-Filler Pipe (AWD) Components With Torque Specification (Except U.S.A. And Canada Specs)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Joint hose (See Joint Hose Installation Note .)
2	Breather hose No. 1 (See Breather Hose No. 1 Installation Note .)
3	Fuel-filler cap
4	Protector
5	O-ring
6	Dust cover
7	Fuel-filler pipe
