U.S.A. and CANADA Specs.: 2WD: Notes
- Level the vehicle.
- Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
- Drain the fuel. (See FUEL DRAINING PROCEDURE .)
- Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)

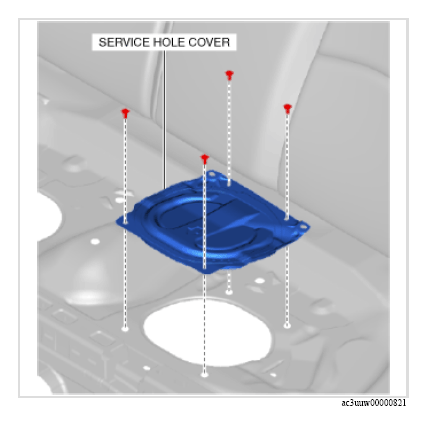

- Remove the service hole cover.
- Disconnect the following parts:
- Fuel pump unit connector
- Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
- Remove the fuel tank side cover. (See FUEL TANK SIDE COVER REMOVAL/INSTALLATION .)

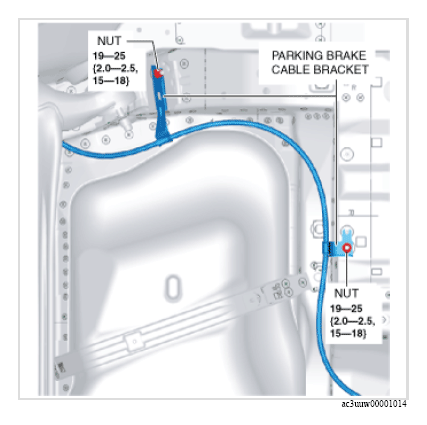

- Remove the parking brake cable bracket (RH) nuts shown in the figure and set the parking brake cable bracket aside in a location that does not interfere with the servicing.
- Remove the insulator. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the HO2S connector.
- Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

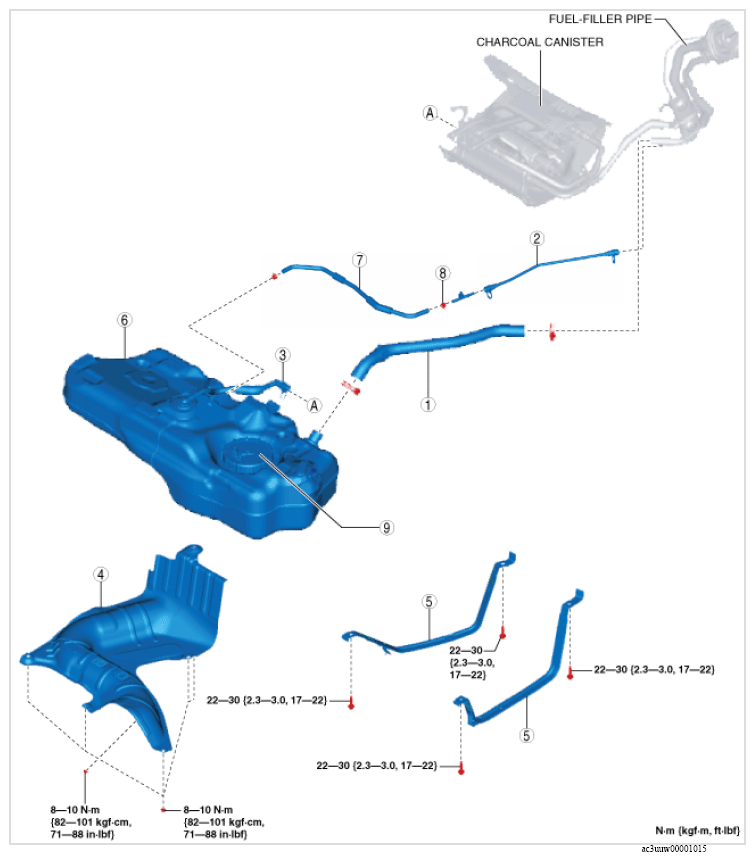

COMPONENT DESCRIPTION
| 1 | Joint hose (See Joint hose installation note .) |
| 2 | Breather hose No. 1 (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .) |
| 3 | Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .) |
| 4 | Fuel tank insulator |
| 5 | Fuel tank strap |
| 6 | Fuel tank (See Fuel tank removal note .) (See Fuel tank installation note .) |
| 7 | Breather hose No. 2 (See Breather hose No. 2 installation note .) |
| 8 | Joint pipe |
| 9 | Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .) |
