Resistance Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Disconnect the throttle body connector.

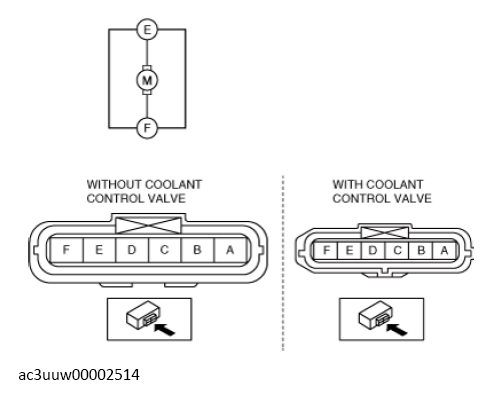

- Measure the resistance between throttle body terminals E and F.
Throttle body resistance
0.3-100 ohms [20°C {68°F}]
- If not as specified, replace the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
