No. 1 Engine Mount Rubber, Front Crossmember Component Removal Note

  1. Loosen the No. 1 engine mount rubber installation bolt (front crossmember side).

    2WD

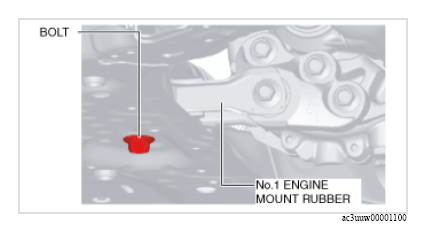

    G13149144Courtesy of MAZDA MOTORS CORP.

    AWD

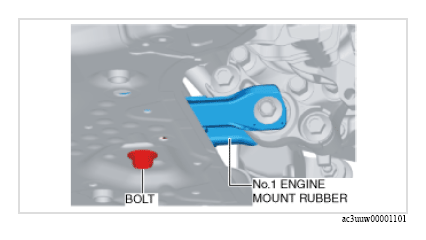

    G13149145Courtesy of MAZDA MOTORS CORP.
  2. Remove the No. 1 engine mount rubber installation bolt (No. 1 engine mount bracket side).

    2WD

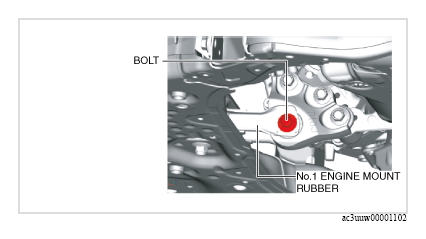

    G13149146Courtesy of MAZDA MOTORS CORP.

    AWD

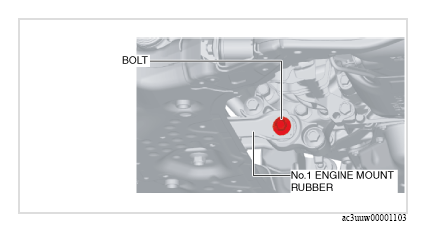

    G13149147Courtesy of MAZDA MOTORS CORP.
  3. Remove the No. 1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
