No. 4 engine mount bracket installation note
NOTE:
- When replacing the No. 4 engine mount bracket, place a mark at the same position as the one placed before removal.
- When loosening the No. 4 engine mount bracket nut, the transaxle stud bolt may loosen.

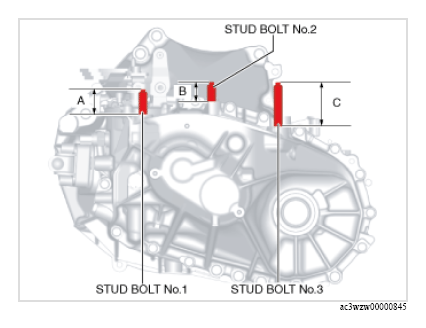

- Measure the projection of the transaxle stud bolts. (MTX)
- If the projection amount is not within the range, adjust the projection amount of the stud bolt.
Projection A of stud bolt No. 1
40-42 mm {1.58-1.65 in}
Projection B of stud bolt No. 2
30.7-32.7 mm {1.21-1.28 in}
Projection C of stud bolt No. 3
70.7-72.7 mm {2.79-2.86 in}

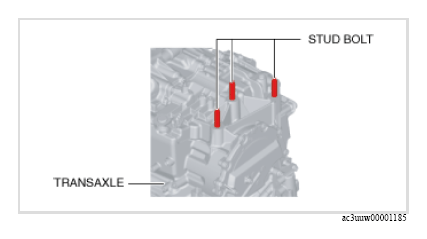

- Tighten the transaxle stud bolts. (ATX)
Tightening torque
15-25 N.m {1.6-2.5 kgf.m, 12-18 ft.lbf}

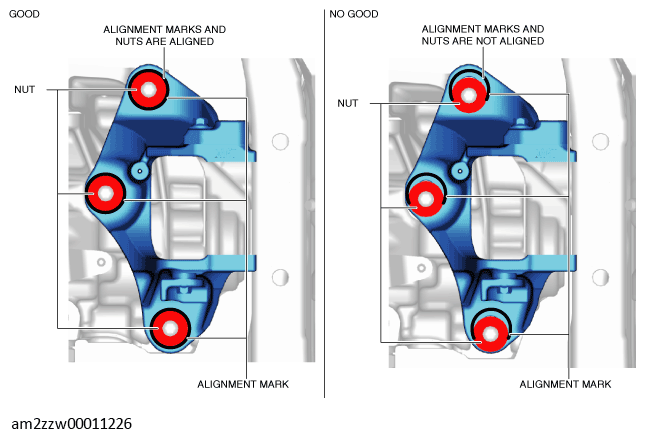

- Align the alignment marks on the No. 4 engine mount bracket and nuts, and temporarily tighten the nuts shown in the figure.

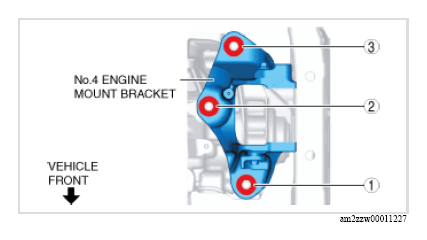

- Tighten the No. 4 engine mount bracket installation nuts in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
92-116 N.m {9.4-11 kgf.m, 68-85 ft.lbf}
