No. 1 engine mount installation note (2WD)

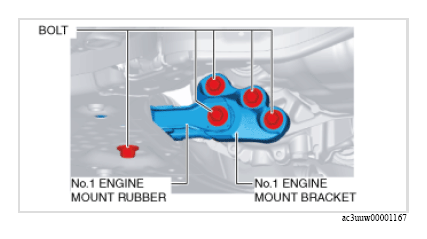

- Install the No. 1 engine mount rubber and bracket, and temporarily tighten the bolts shown in the figure.

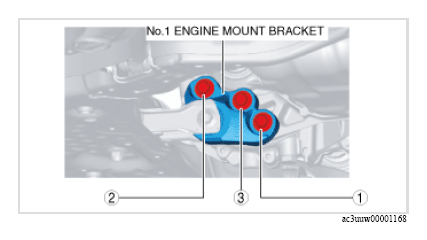

- Tighten the No. 1 engine mount bracket installation bolts in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
84-98 N.m {8.6-9.9 kgf.m, 62-72 ft.lbf}

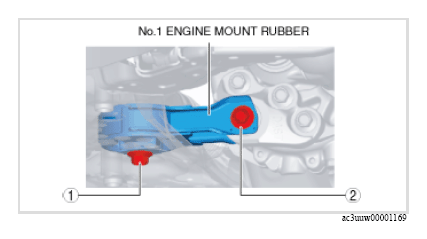

- Tighten the No. 1 engine mount rubber installation bolts in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONSInstallation position Tightening torque 1 141-172 N.m {15-17 kgf.m, 104-126 ft.lbf} 2 130-164 N.m {14-16 kgf.m, 96-120 ft.lbf}
