Thermostat Installation Note

CAUTION:
  • Do not apply oil (such as engine oil, ATF) to the rubber seal part of the thermostat. Otherwise, the O-ring could swell causing a seal malfunction.

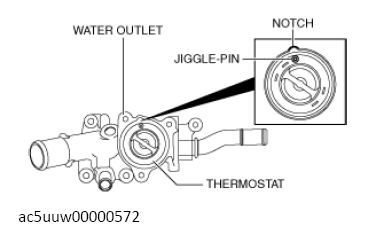

  1. Install the thermostat with the jiggle pin aligned with the notch of the water outlet.
G13149355Courtesy of MAZDA MOTORS CORP.
