Upper Mount Rubber Bracket Removal Note

CAUTION:

To prevent damage to the upper mount rubber bracket tab, do not apply excessive force.

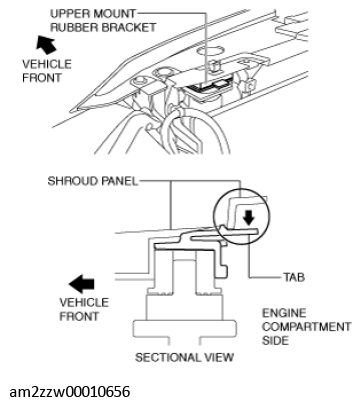

While pressing down the upper mount rubber bracket tab lightly in the direction of the arrow shown in the figure, pull out the upper mount rubber bracket toward the vehicle rear.

Courtesy of MAZDA MOTORS CORP.
Remove the upper mount rubber bracket.
