Purge Solenoid Valve Removal/Installation: Notes
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the high pressure fuel pump connector.

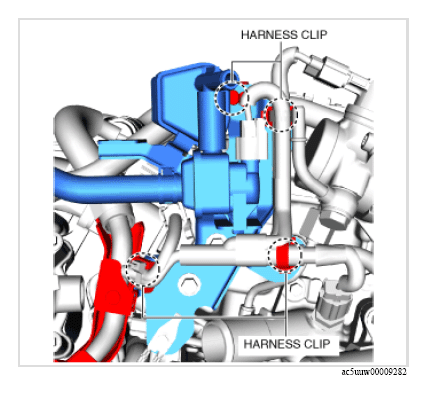

- Disconnect the harness clip as shown in the figure.
- Disconnect the vacuum hose from the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

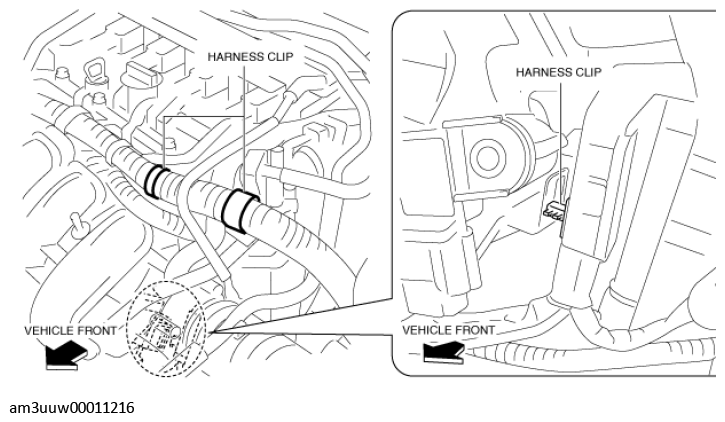

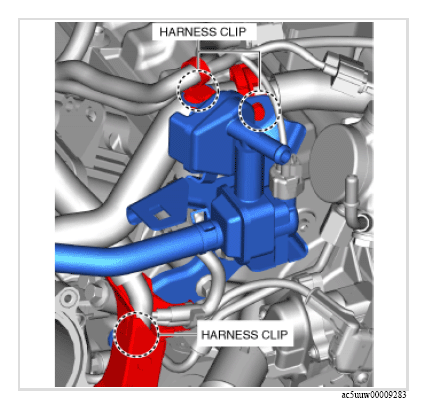

- Disconnect the harness clip as shown in the figure.
Without coolant control valve
With coolant control valve
- Remove in the order indicated in the table.

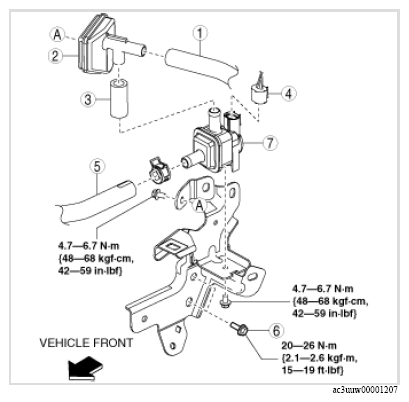

Without coolant control valve
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Evaporative hose No. 1
(See Evaporative Hose No. 1 Installation Note .)2 Catch tank 3 Evaporative hose No. 2 4 Purge solenoid valve connector 5 Evaporative hose No. 3
(See Evaporative Hose No. 3 Installation Note .)6 Purge solenoid valve bracket installation bolt 7 Purge solenoid valve

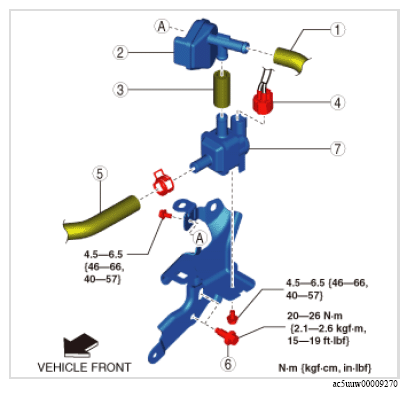

(See Purge Solenoid Valve Installation Note .)With coolant control valve
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Evaporative hose No. 1
(See Evaporative Hose No. 1 Installation Note .)2 Catch tank 3 Evaporative hose No. 2 4 Purge solenoid valve connector 5 Evaporative hose No. 3
(See Evaporative Hose No. 3 Installation Note .)6 Purge solenoid valve bracket installation bolt 7 Purge solenoid valve
(See Purge Solenoid Valve Installation Note .) - Install in the reverse order of removal.
