Exhaust System Side

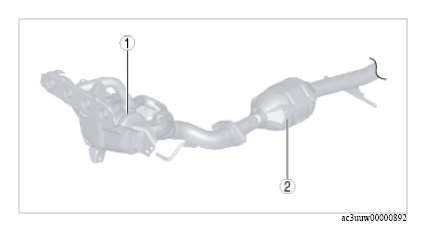

2WD

G13149586Courtesy of MAZDA MOTORS CORP.

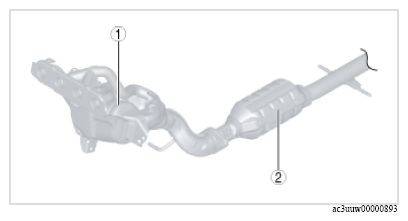

AWD

G13149587Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 WU-TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
2 TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
