LCD Inspection

  1. Connect the M-MDS to the DLC-2.
  2. After vehicle identification, select the following from the M-MDS initialization screen.
    1. "Data logger"
    2. "Module"
    3. "IC"
  3. Using the simulation function LCD_SEG, verify that the LCD is illuminated.

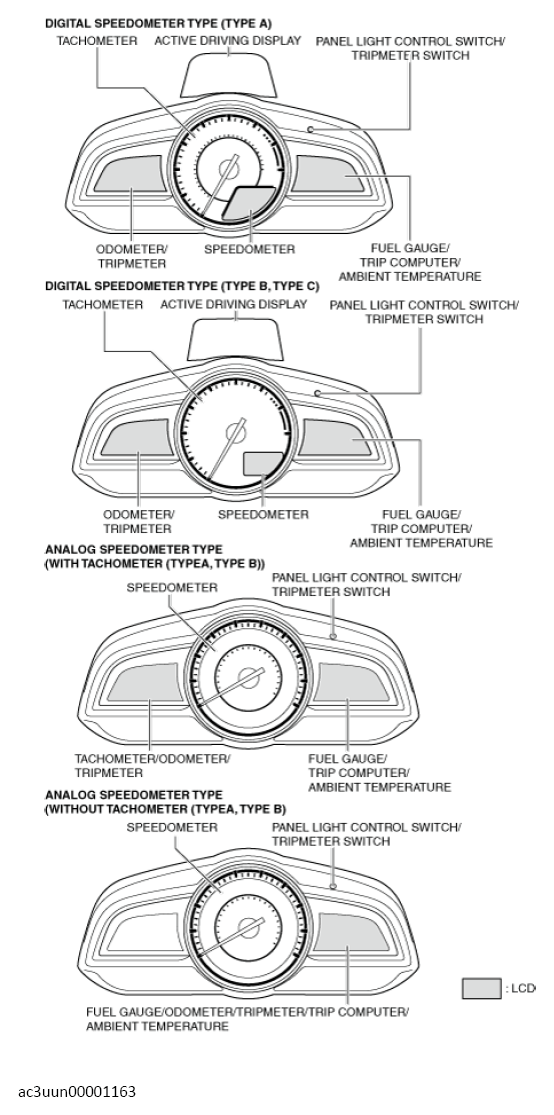

G13153473Courtesy of MAZDA MOTORS CORP.
