Horn Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
  3. Remove the ground bolt.

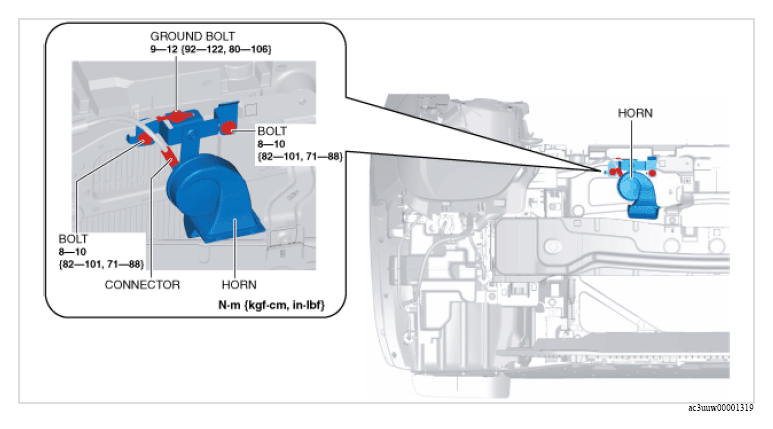

    Fig 1: Ground Bolt With Torque Specification
    G13153466Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the bolt.
  6. Remove the horn.
  7. Install in the reverse order of removal.
