Rear Drive Shaft Disassembly/Assembly: Notes
CAUTION:
- Do not allow a magnetized tool such as a magnetized screwdriver to come into contact with the ABS sensor rotor. If the ABS sensor rotor becomes magnetized it will be unable to read the ABS wheel-speed sensor waveform correctly resulting in an ABS system malfunction to be determined and the inability to perform ABS control. If a magnetized object comes into contact with the ABS sensor rotor, it will be necessary to newly replace the rear drive shaft (ABS sensor rotor).

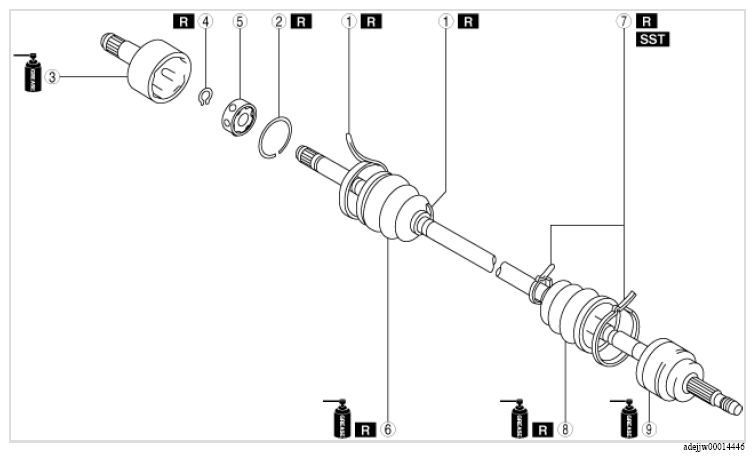

- Disassemble in the order shown in the figure.
- Assemble in the reverse order of removal.COMPONENT DESCRIPTION
1 Boot band (differential side)
(See Boot Band Disassembly Note .)
(See Boot Band Assembly Note .)2 Clip
(See Clip, Outer Ring Disassembly Note .)
(See Outer Ring, Clip Assembly Note .)3 Outer ring
(See Clip, Outer Ring Disassembly Note .)
(See Outer Ring, Clip Assembly Note .)4 Snap ring
(See Snap ring, Ball, Inner Ring, Cage Disassembly Note .)
(See Ball, Inner Ring, Cage, Snap Ring Assembly Note .)5 Ball, inner ring, cage
(See Snap ring, Ball, Inner Ring, Cage Disassembly Note .)
(See Ball, Inner Ring, Cage, Snap Ring Assembly Note .)6 Boot (differential side)
(See Boot (Differential Side) Disassembly Note .)
(See Boot (Differential Side) Assembly Note .)7 Boot band (wheel side)
(See Boot Band Disassembly Note .)
(See Boot Band Assembly Note .)8 Boot (wheel side)
(See Boot (Wheel Side) Disassembly Note .)
(See Boot (Wheel Side) Assembly Note .)9 Shaft and ball joint component
