Front Brake Mounting Support Removal/Installation: Notes
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

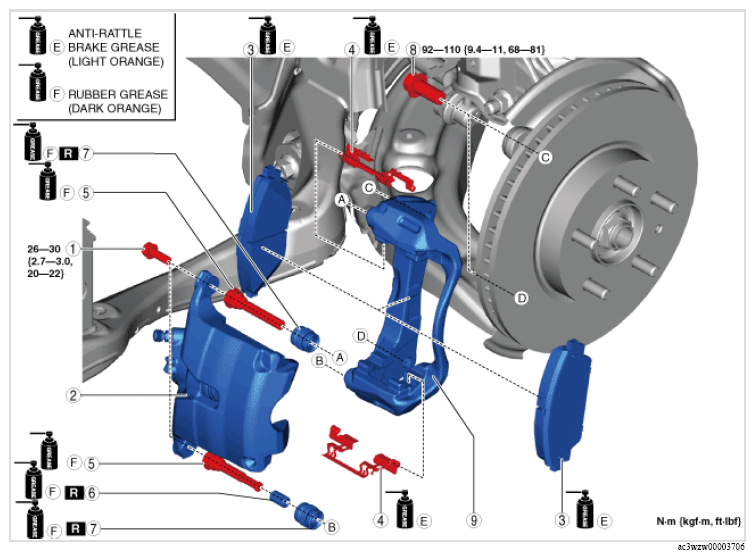

COMPONENT DESCRIPTION
| 1 | Bolt |
| 2 | Front brake caliper (See Front Brake Caliper Component Removal Note .) |
| 3 | Disc pad component |
| 4 | Guide plate (See Guide Plate Installation Note .) |
| 5 | Slide pin |
| 6 | Bushing |
| 7 | Dust boot |
| 8 | Bolt |
| 9 | Mounting support |
