Front Brake Disc Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

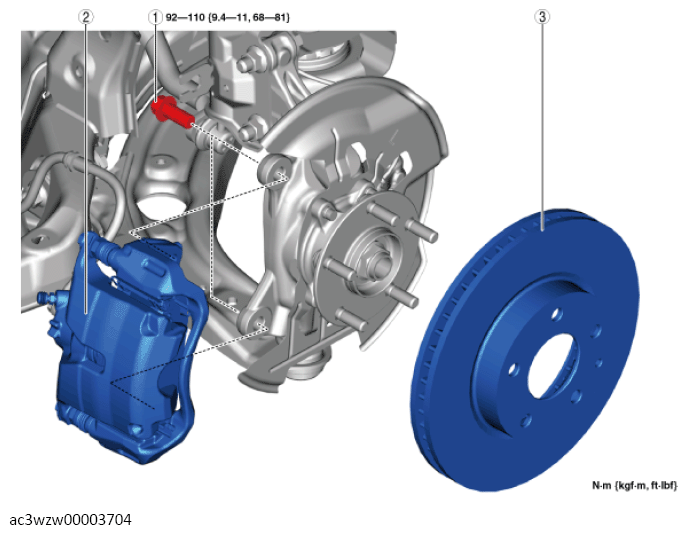

Fig 1: Front Brake Disc Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Front brake caliper component (See Front Brake Caliper Component Removal Note .) (See Front Brake Caliper Installation Note .)
3	Disc plate
