Guide Plate Installation Note

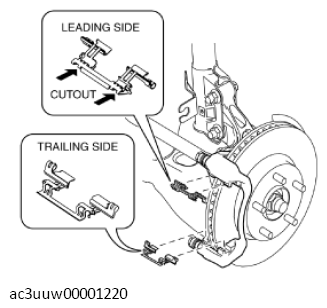

  1. Install the guide plate as shown in the figure.
G11430576Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • Abnormal noises may occur from the front brake if the guide plate is installed in an abnormal position. When installing the guide plate to the mounting support, install it correctly to the mounting support as shown in the figure.
