Disc Pad Installation Note

  1. Clean the exposed area of the piston.

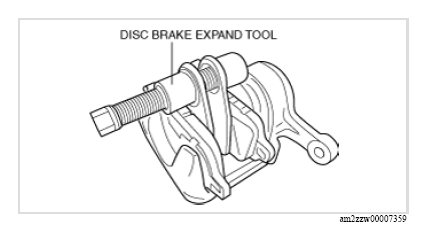

  2. Push the piston in using the commercially available disc brake expand tool.
    G13150261Courtesy of MAZDA MOTORS CORP.
  3. Install the disc pads to the mounting support.
