Meter Hood Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

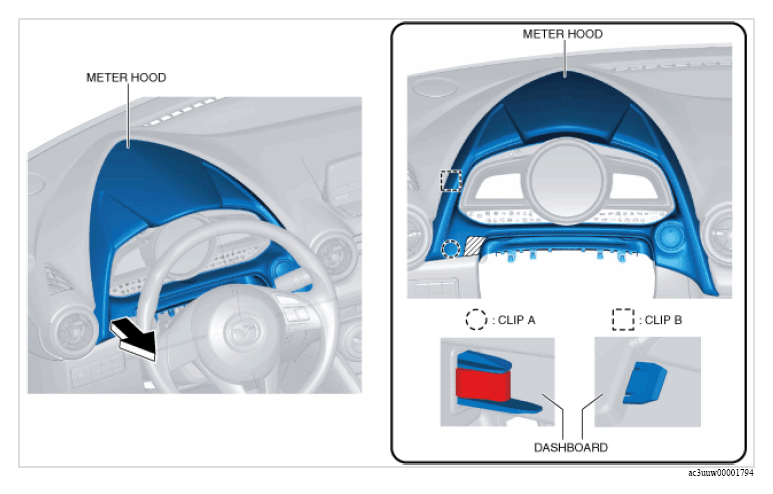

  3. Hold the shaded area shown in the figure, pull the meter hood in the direction of the arrow and detach clips A and B from the dashboard.
    G13152855Courtesy of MAZDA MOTORS CORP.

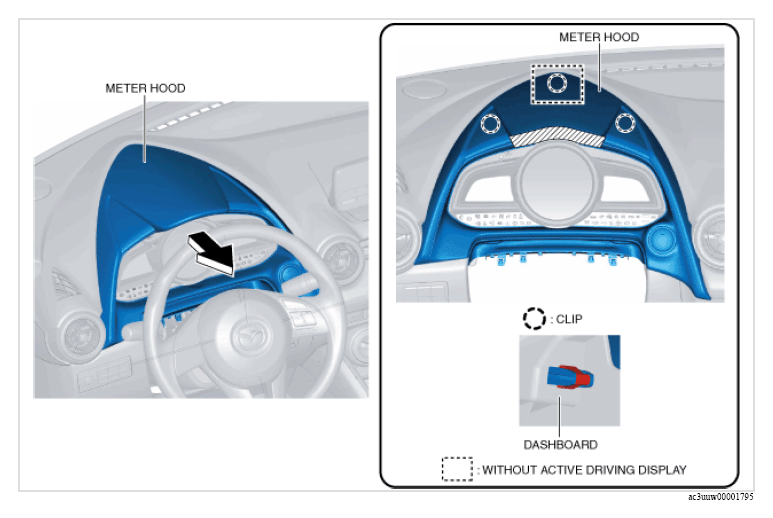

  4. Hold the shaded area shown in the figure, pull the meter hood in the direction of the arrow and detach the clips from the dashboard.
    G13152856Courtesy of MAZDA MOTORS CORP.

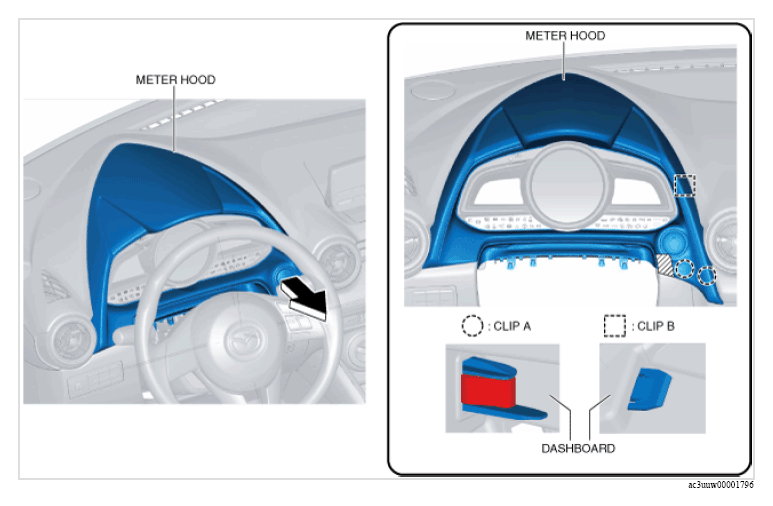

  5. Hold the shaded area shown in the figure, pull the meter hood in the direction of the arrow and detach clips A and B from the dashboard.
    G13152857Courtesy of MAZDA MOTORS CORP.

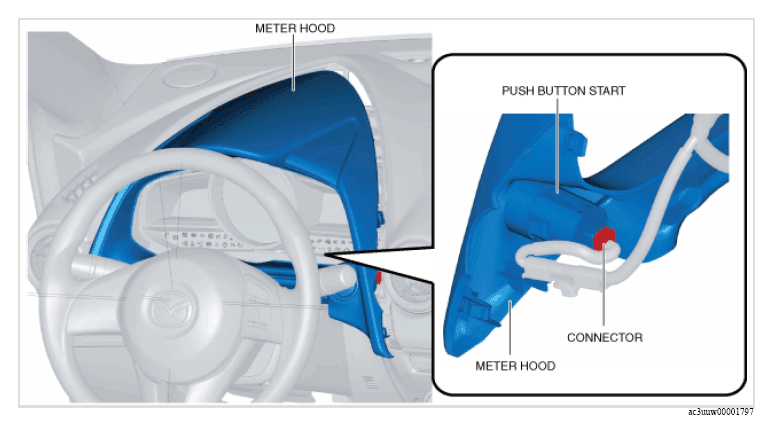

  6. Disconnect the push button start connector.
    G13152858Courtesy of MAZDA MOTORS CORP.
  7. Remove the meter hood.
  8. Remove the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
  9. Install in the reverse order of removal.
