Liftgate Upper Trim Removal/Installation

  1. Open the liftgate.

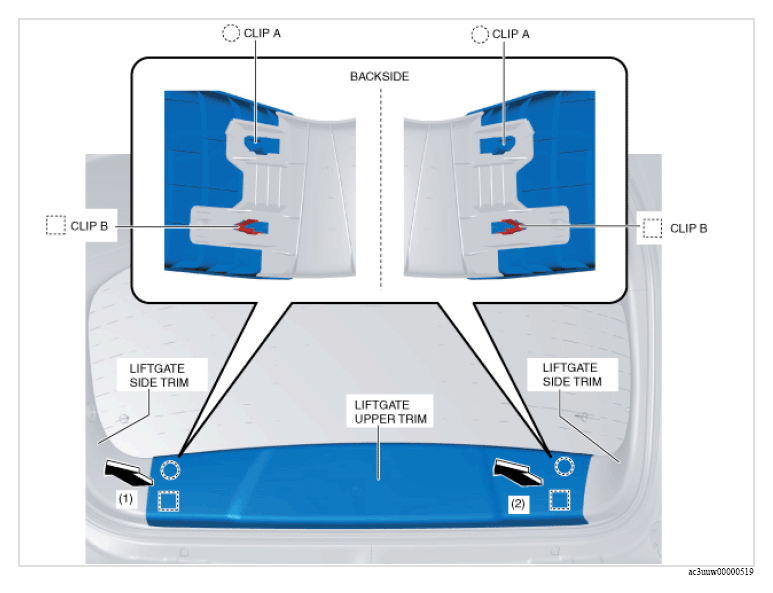

  2. Pull the liftgate upper trim in the order of the arrows shown in the figure and detach clips A and B from the liftgate side trim.
    G13152851Courtesy of MAZDA MOTORS CORP.

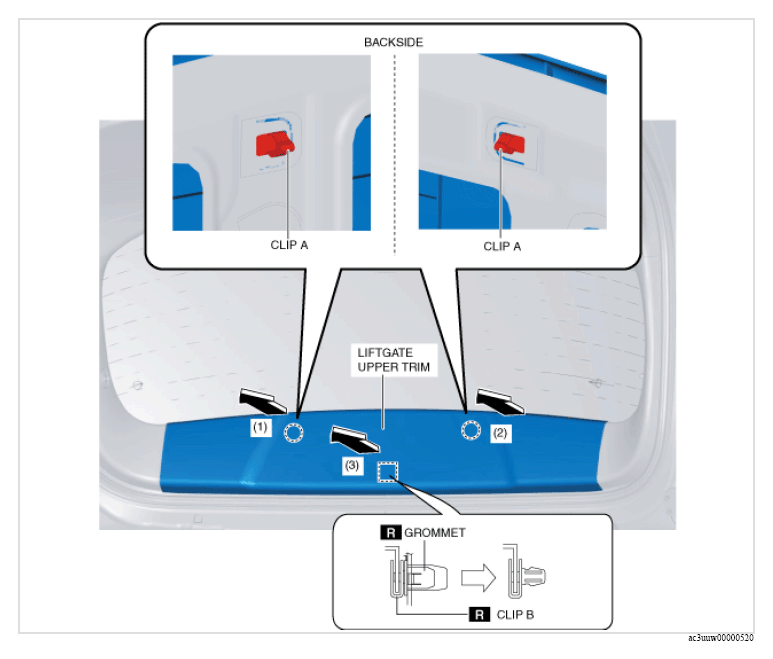

  3. Pull the liftgate upper trim in the order of the arrows shown in the figure and detach clips A and B from the liftgate.
    G13152852Courtesy of MAZDA MOTORS CORP.

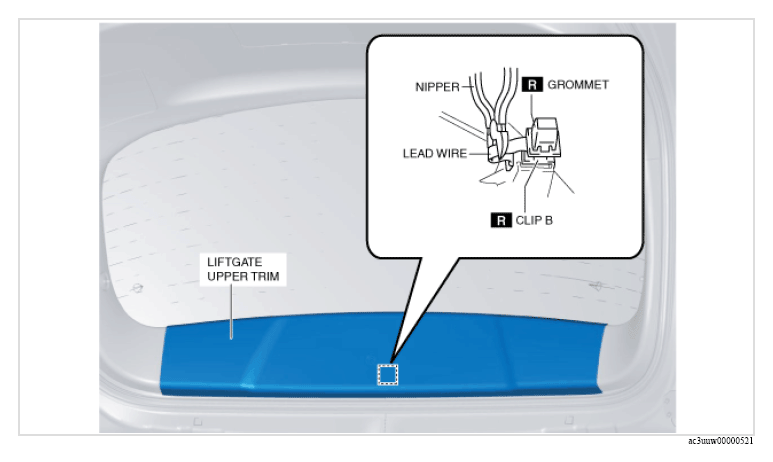

  4. Cut the lead wire connecting clip B and the grommet using a nipper in the position shown in the figure and remove the liftgate upper trim.
    G13152853Courtesy of MAZDA MOTORS CORP.

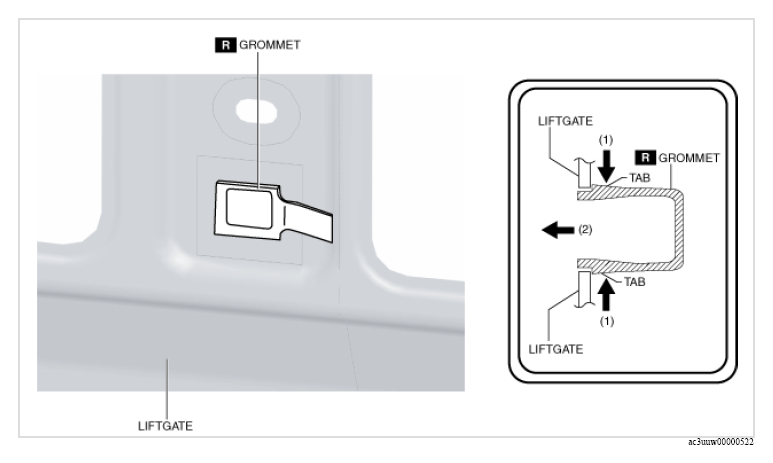

  5. Press the grommet tabs in the direction of arrows (1) shown in the figure, pull the grommet out in the direction of arrow (2) and remove the grommet from the liftgate.
    G13152854Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
    NOTE:
    • When installing the liftgate upper trim, install clip B and the grommet to the liftgate upper trim in advance.
