Console Side Panel No. 1 Removal Note

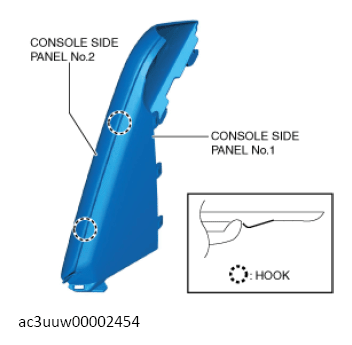

While detaching the hooks shown in the figure, remove the console side panel No. 1 from console side panel No. 2.

G13152761

Courtesy of MAZDA MOTORS CORP.
