Assist Handle Removal/Installation: Removal

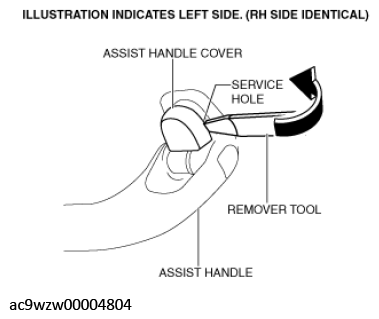

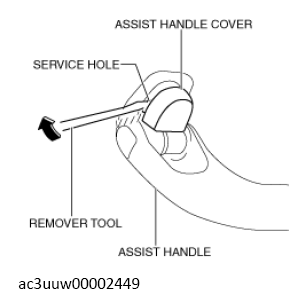

1. Insert a remover tool into the service hole and remove the assist handle covers.

   Courtesy of MAZDA MOTORS CORP.

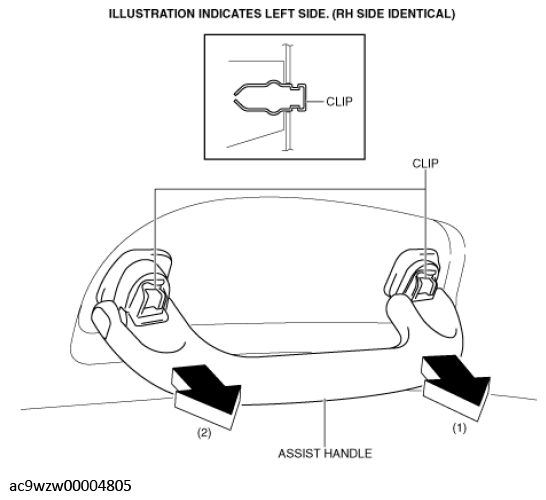

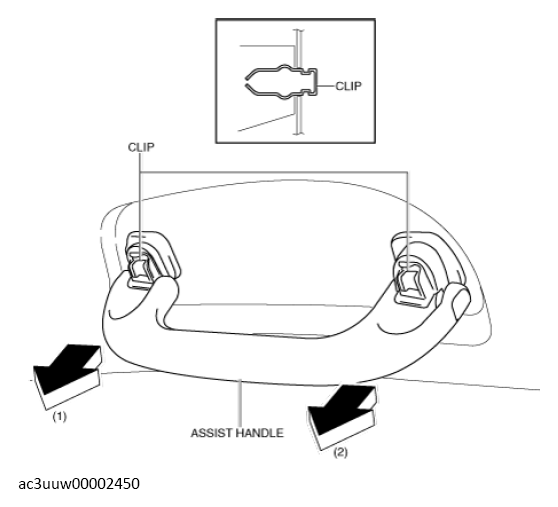

2. Remove the assist handle in the direction of arrows (1) and (2), while detaching the clips.

Courtesy of MAZDA MOTORS CORP.

NOTE:

• Remove the assist handle by shaking it up and down.
