Plate Removal/Installation

  1. Lift up the vehicle.
  2. Remove the bolts and fasteners.

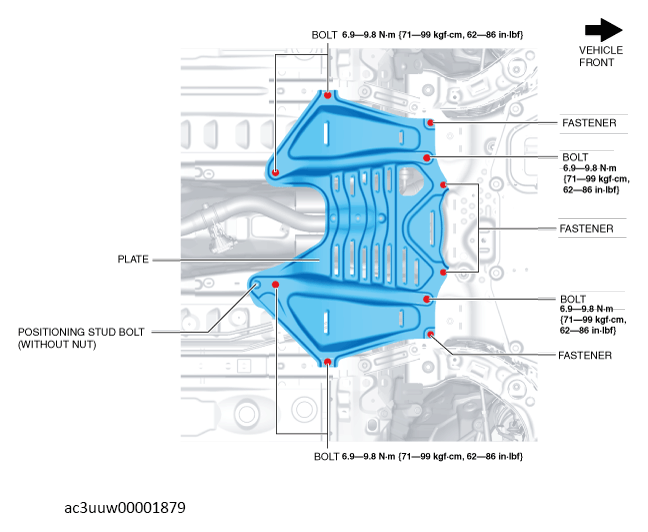

    Fig 1: Plate, Stud Bolt, Bolts And Fasteners With Torque Specification
    G13152620Courtesy of MAZDA MOTORS CORP.
  3. Pull the plate out of the positioning stud bolt and remove the plate.
  4. Install in the reverse order of removal.
