Ornament Installation

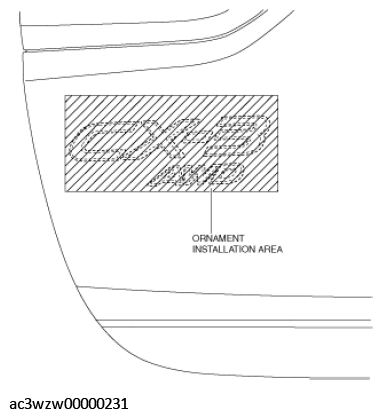

  1. Remove any grease or dirt from the ornament installation surface of the liftgate.
    G11434136Courtesy of MAZDA MOTORS CORP.
  2. Warm the ornament installation area to between 15°C {59°F} and 40°C {104°F} using a heat gun.
  3. Install the ornament to the position shown in the figure.

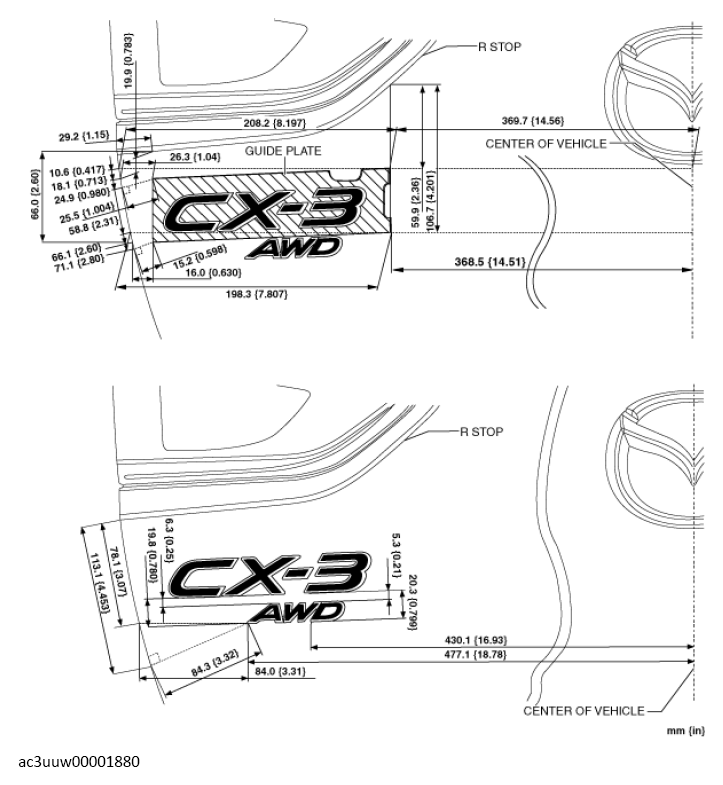

    LH

    G13152614Courtesy of MAZDA MOTORS CORP.

    RH

    G11434138Courtesy of MAZDA MOTORS CORP.
  4. Press the ornament to adhere the double-sided adhesive tape to the ornament installation area.
