Front Splash Shield Removal/Installation

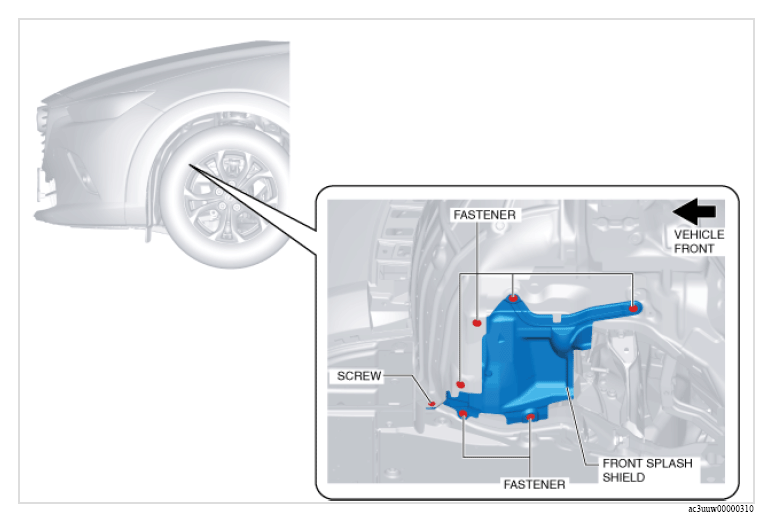

  1. Remove the screw and fasteners.
    G13152606Courtesy of MAZDA MOTORS CORP.
  2. Remove the front splash shield.
  3. Install in the reverse order of removal.
