Rear Door Module Panel Removal/Installation

  1. Fully open the rear door glass.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Power window subswitch (Rear door) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    3. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
    4. Rear power window motor (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
    5. Rear power window regulator (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
    NOTE:
    • After removing the rear door trim, secure the inner handle using screws so that the procedure is performed smoothly.
  4. Disconnect the connectors.

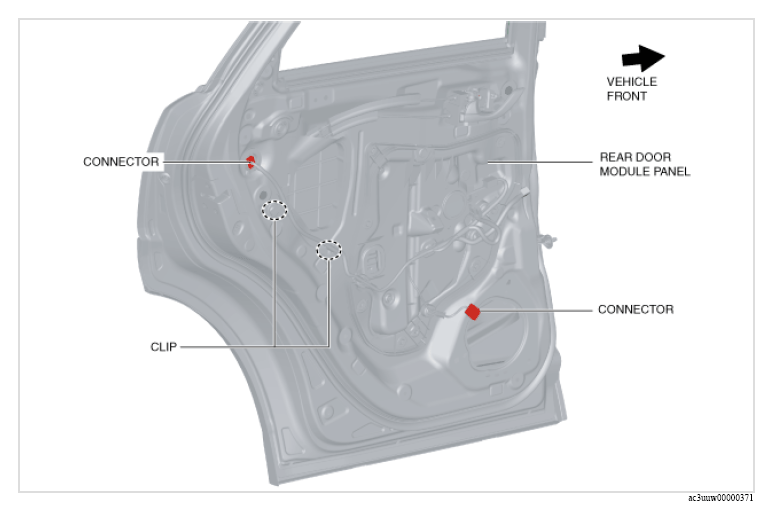

    G13152040Courtesy of MAZDA MOTORS CORP.
  5. Remove the wiring harness clips.
  6. Remove the screws and fastener.

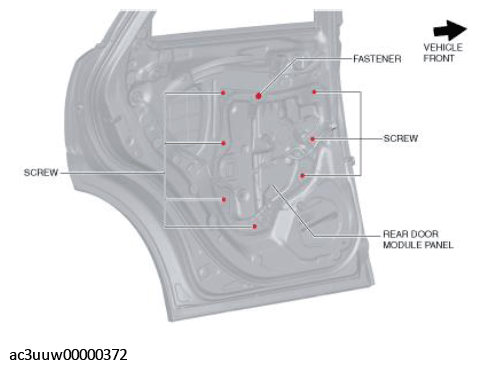

    G11433941Courtesy of MAZDA MOTORS CORP.
  7. Remove the clips and set the rear door wiring harness aside.

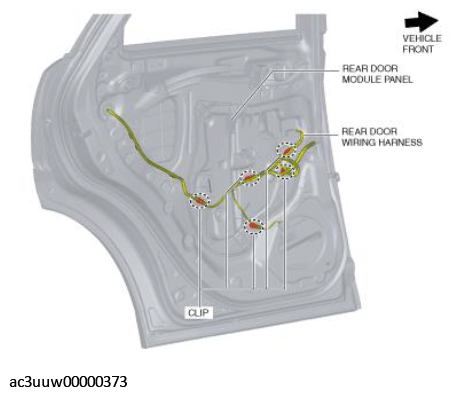

    G11433942Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If the protector does not come out easily from the rear door inner panel, pulling the rear door module panel forcibly may cause the rear door module panel to deform. If the protector does not come out easily, remove the rear door module panel while gradually removing the protector.
  8. Pull the rear door module panel in the direction of the arrow shown in the figure and remove the pin from the rear door inner panel.

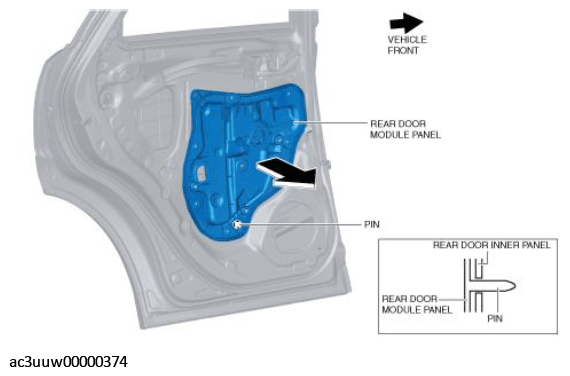

    G11433943Courtesy of MAZDA MOTORS CORP.
  9. Remove the rear door module panel.
  10. Install in the reverse order of removal.
