Rear Door Lock-Link Switch Inspection: LH
- Fully lower the rear door glass.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
- Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
- Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
- Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
- If the door lock condition is to be inspected, pull the door lock knob cable, or press it in.

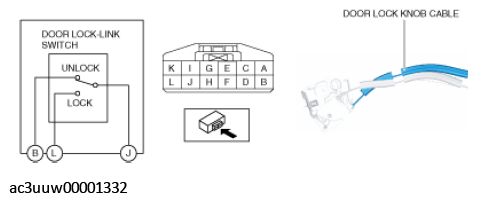

- Verify that the continuity is as indicated in the table.
- If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
