Liftgate Opener Switch Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

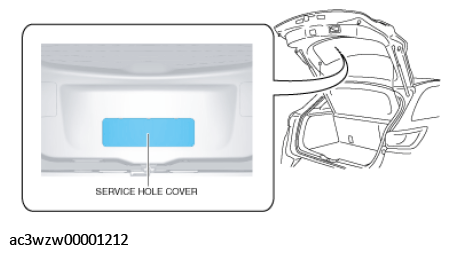

  2. Remove the service hole cover.
    G11434036Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connector.
    G11472725Courtesy of MAZDA MOTORS CORP.

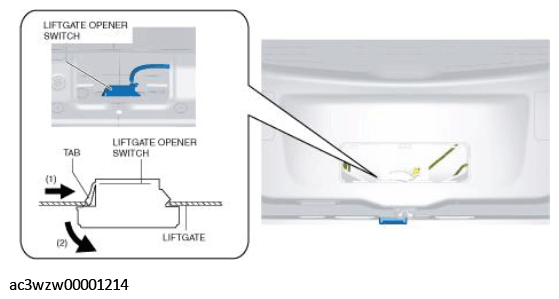

  4. While pressing the liftgate opener switch tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the liftgate opener switch tab from the liftgate.
    G11472726Courtesy of MAZDA MOTORS CORP.
  5. Remove the liftgate opener switch from the liftgate.
  6. Install in the reverse order of removal.
