Vehicle interior, rear

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  3. Disconnect the connector from the keyless antenna.

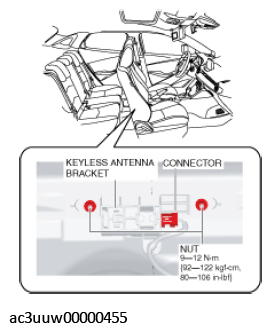

    Fig 1: Keyless Antenna Bracket And Nuts With Torque Specification
    G11472691Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts from the keyless antenna bracket.

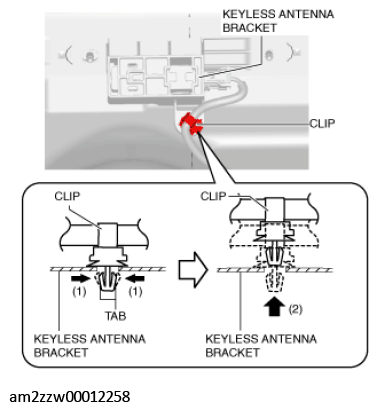

  5. While pressing the clip tab in the directions of arrows (1) shown in the figure, press it in the direction of arrow (2) to detach the clip tab from the keyless antenna bracket.
    G11472692Courtesy of MAZDA MOTORS CORP.
  6. Remove the clip from the keyless antenna bracket.

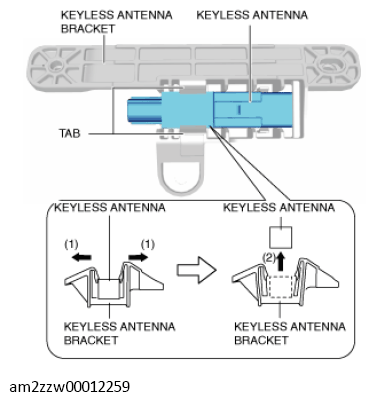

  7. While pressing the keyless antenna bracket tab in the directions of arrows (1) shown in the figure, pull the keyless antenna in the direction of arrow (2) to detach the keyless antenna bracket tab from the keyless antenna.
    G11472693Courtesy of MAZDA MOTORS CORP.
  8. Remove the keyless antenna from the keyless antenna bracket.
  9. Install in the reverse order of removal.
