Rear Inner Handle

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

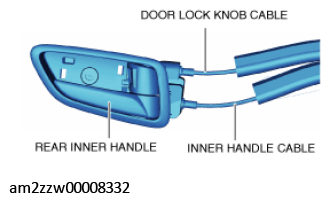

  3. Disconnect the door lock knob cable and the inner handle cable from the rear inner handle.
    G11472687Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
