Wiper And Washer Switch Removal/Installation
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

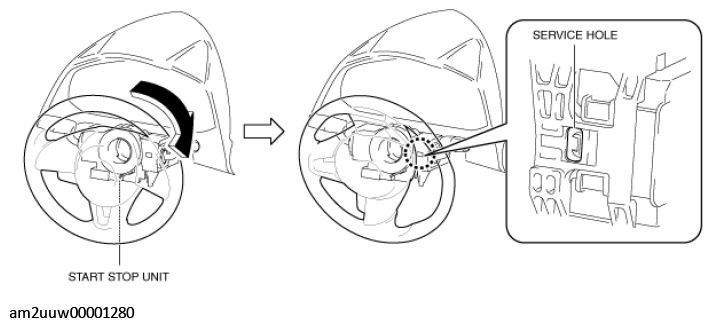

- Rotate the steering wheel until the service hole is visible in the position shown in the figure.

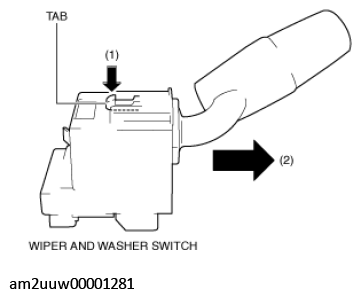

- While pressing the wiper and washer switch tab in the direction of arrow (1) shown in the figure, pull out the wiper and washer switch in the direction of arrow (2) shown in the figure, and detach the wiper and washer switch tab from the start stop unit.
- Remove the wiper and washer switch.
- Install in the reverse order of removal.
