Washer Tank Removal/Installation
>>
Washer Hose Installation Note
Washer Hose Installation Note

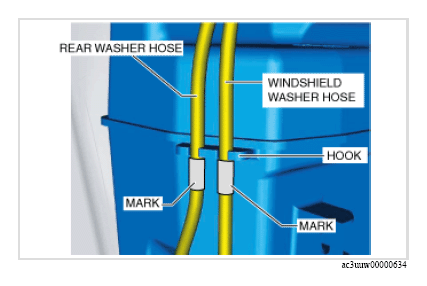

When installing the washer hoses to the washer tank hooks, install them with the upper end of the marks aligned to the hooks.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
