Washer Motor Inspection

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Disconnect the connector. (See WASHER MOTOR REMOVAL/INSTALLATION .)
Disconnect the washer hose from the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)

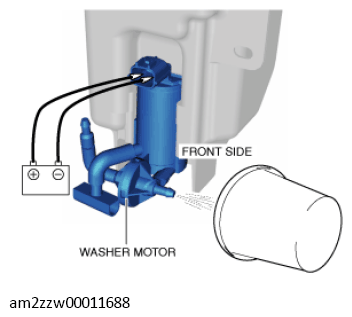

Apply battery voltage to washer motor terminal B, and connect terminal A to ground.
WARNING:
- Water sprayed on the battery and ground could cause electrocution. When performing the washer motor inspection, prepare a container to collect washer fluid and be careful not to spray washer fluid.
Courtesy of MAZDA MOTORS CORP.
Verify that washer fluid sprays from the front side of the washer motor.

Courtesy of MAZDA MOTORS CORP.
- If washer fluid does not spray from the front side of the washer motor, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)

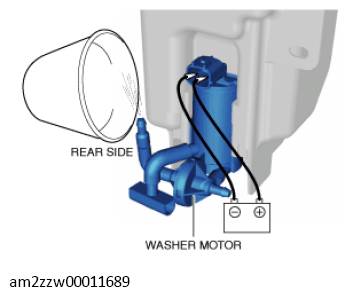

Apply battery positive voltage to washer motor terminal A, and connect terminal B to ground.
Verify that washer fluid sprays from the rear side of the washer motor.

Courtesy of MAZDA MOTORS CORP.

If washer fluid does not spray from the rear side of the washer motor, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)
