Light Switch Inspection
>>

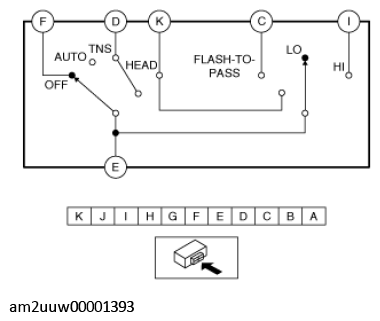

Light Switch
>>
With auto light system
With auto light system
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.

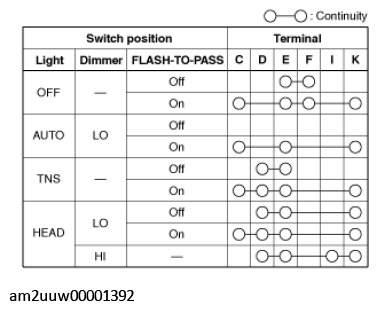

If not as indicated in the table, replace the light switch. (See
LIGHT SWITCH REMOVAL/INSTALLATION
.)
