Liftgate Light Removal/Installation

NOTE:
  • Fogging or dew condensation may occur on the inside of the liftgate light because of a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the liftgate light. However, it has no effect on the light performance because the phenomenon is resolved when temperature inside the liftgate light rises after the back-up light turns on or a period of time has elapsed.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

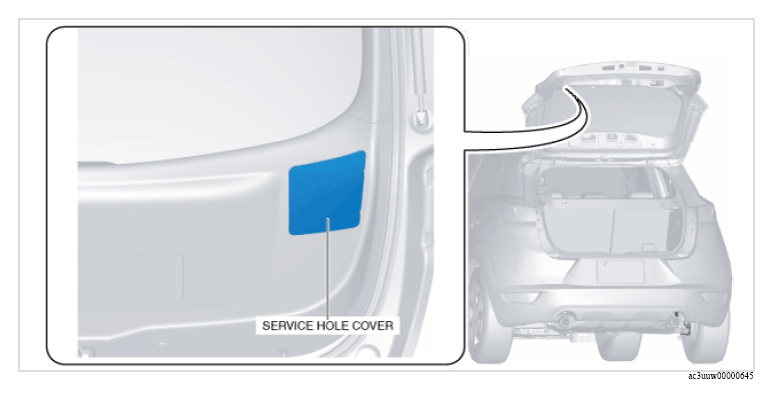

  2. Remove the service hole cover.
    G13153050Courtesy of MAZDA MOTORS CORP.

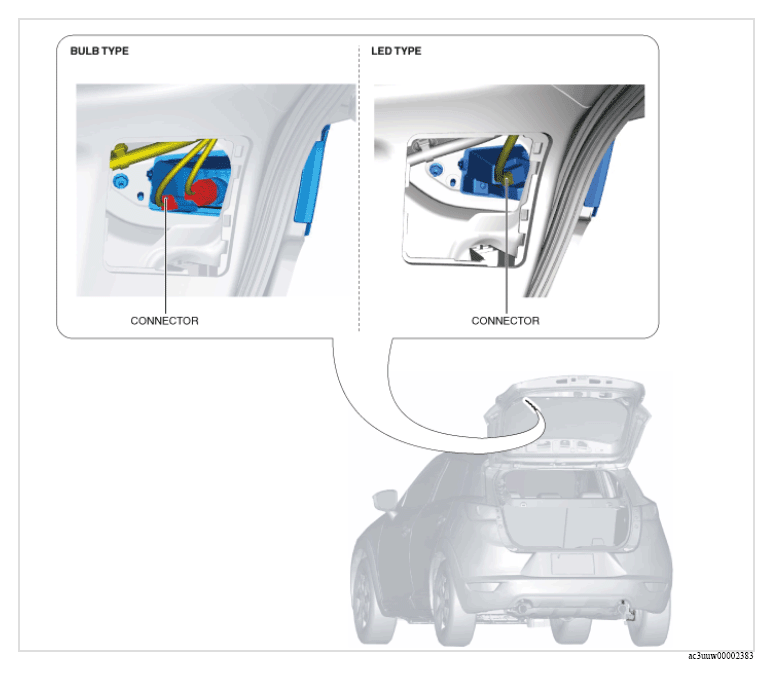

  3. Disconnect the connector.
    G13153051Courtesy of MAZDA MOTORS CORP.

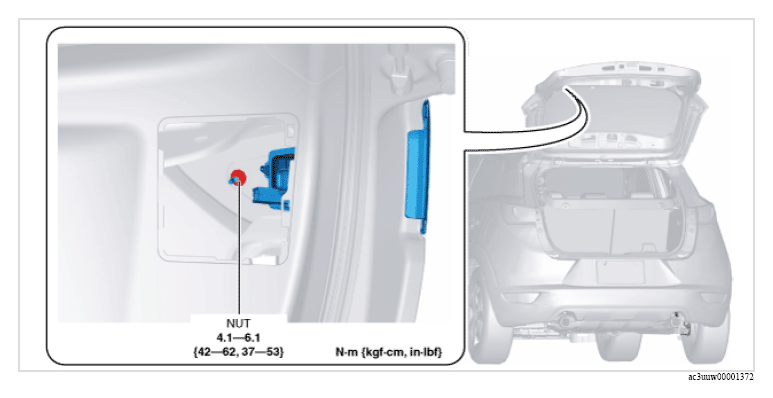

  4. Remove the nut.
    Fig 1: Liftgate Light Nut With Torque Specification
    G13153052Courtesy of MAZDA MOTORS CORP.

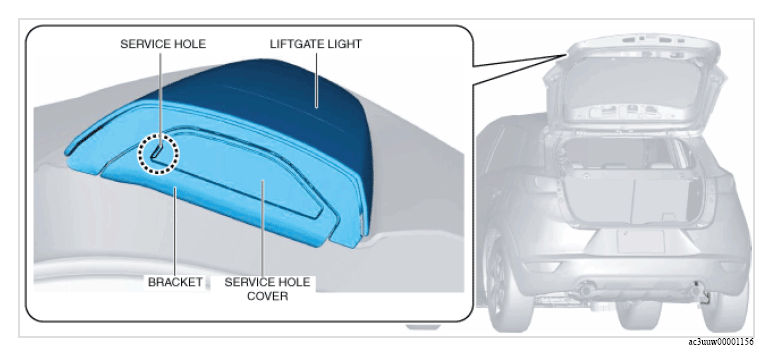

  5. Insert the remover tool into the service hole at the position shown in the figure.
    G13153053Courtesy of MAZDA MOTORS CORP.

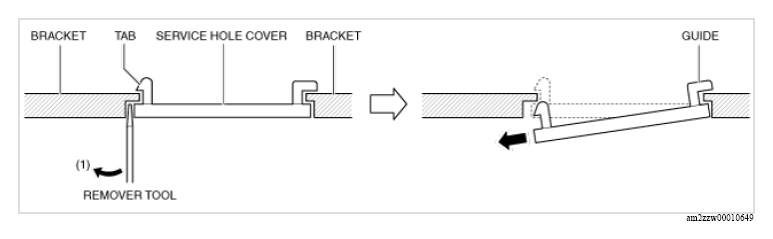

  6. Move the remover tool in the direction of arrow (1) shown in the figure, pull out the service hole cover tab from the bracket and detach the service hole cover tab from the bracket.
    G13153054Courtesy of MAZDA MOTORS CORP.
  7. Pull the service hole cover guide from the bracket and remove the service hole cover.

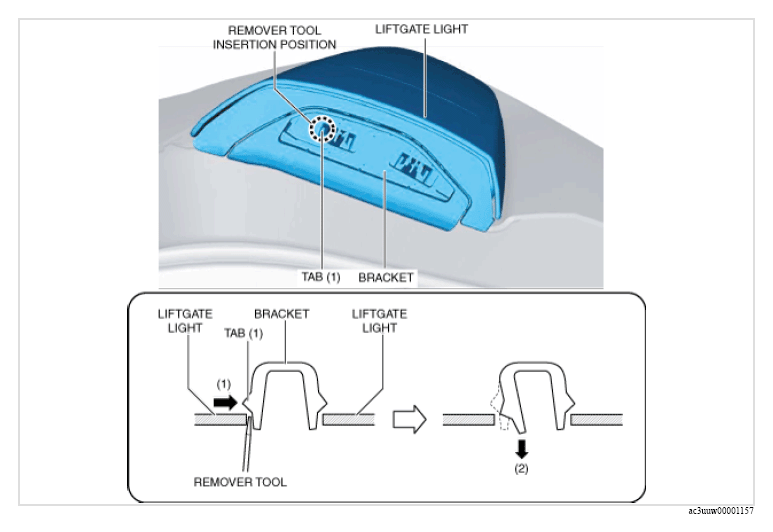

  8. Insert the remover tool into the gap between tab (1) of the bracket and liftgate light.
    G13153055Courtesy of MAZDA MOTORS CORP.
  9. While pressing tab (1) of the bracket in the direction of arrow (1) shown in the figure using the remover tool, pull the bracket in the direction of arrow (2) to detach tab (1) of the bracket from the liftgate light.

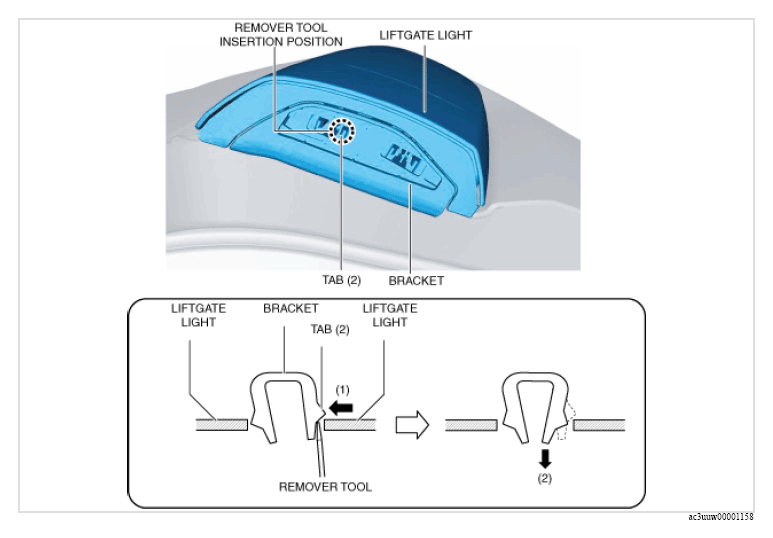

  10. Insert the remover tool into the gap between tab (2) of the bracket and the liftgate light.
    G13153056Courtesy of MAZDA MOTORS CORP.
  11. While pressing tab (2) of the bracket in the direction of arrow (1) shown in the figure using the remover tool, pull the bracket in the direction of arrow (2) to detach tab (2) of the bracket from the liftgate light.

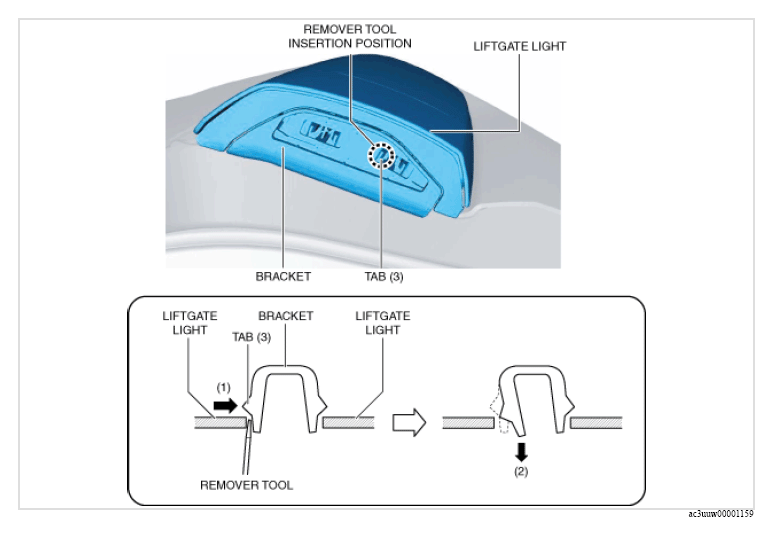

  12. Insert the remover tool into the gap between tab (3) of the bracket and the liftgate light.
    G13153057Courtesy of MAZDA MOTORS CORP.
  13. While pressing tab (3) of the bracket in the direction of arrow (1) shown in the figure using the remover tool, pull the bracket in the direction of arrow (2) to detach tab (3) of the bracket from the liftgate light.

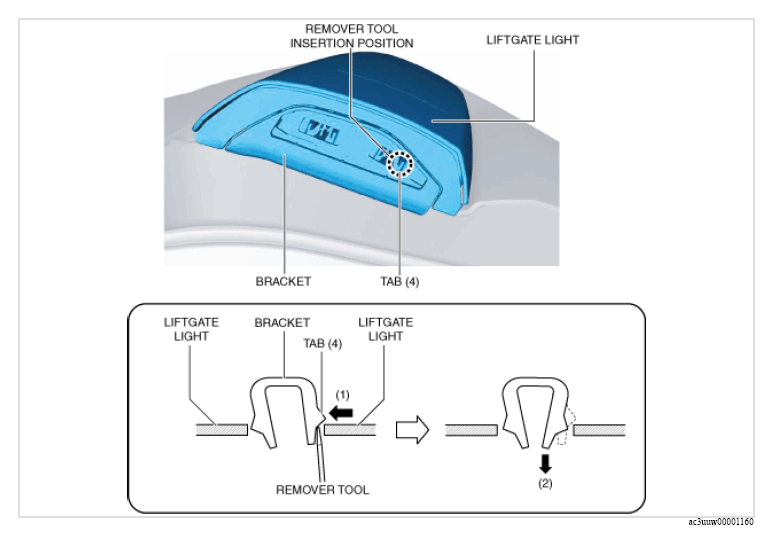

  14. Insert the remover tool into the gap between tab (4) of the bracket and the liftgate light.
    G13153058Courtesy of MAZDA MOTORS CORP.
  15. While pressing tab (4) of the bracket in the direction of arrow (1) shown in the figure using the remover tool, pull the bracket in the direction of arrow (2) to detach tab (4) of the bracket from the liftgate light.
  16. Remove the bracket from the liftgate light.
    CAUTION:
    • When removing the liftgate light from the liftgate, the liftgate light could contact the liftgate and damage it. Apply protective tape to the liftgate before removing the liftgate light from the liftgate.

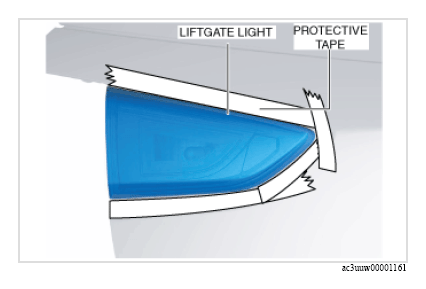

  17. To prevent scratches, apply protective tape to the position shown in the figure.
    G13153059Courtesy of MAZDA MOTORS CORP.

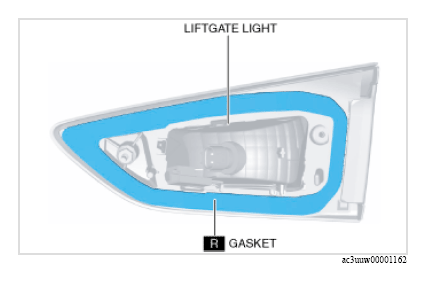

  18. Using the remover tool, remove the liftgate light gasket.
    G13153060Courtesy of MAZDA MOTORS CORP.

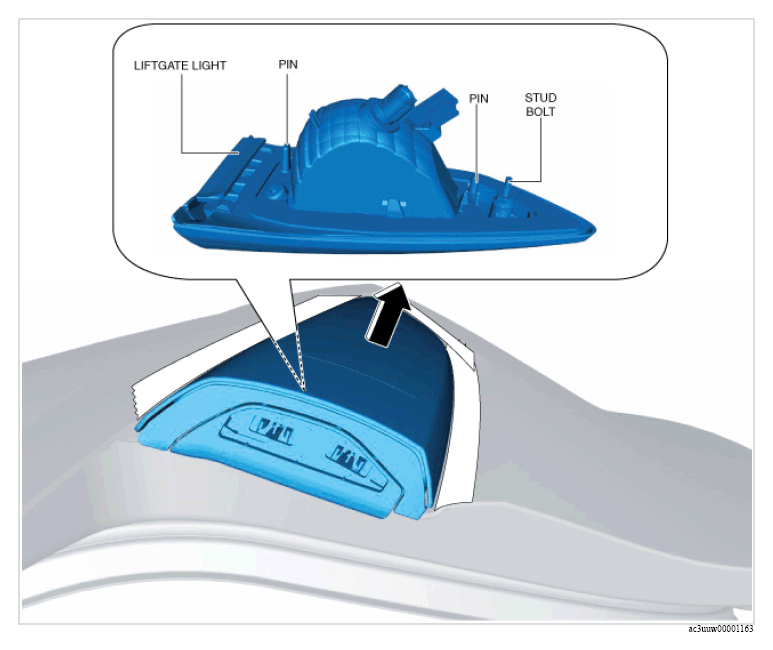

  19. Move the liftgate light in the direction of the arrow shown in the figure and pull out the hook, pins, and stud bolt from the liftgate.
    G13153061Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When removing the liftgate light from the liftgate, the liftgate light may fall off and be damaged. Remove the liftgate light from the liftgate while holding the liftgate light on the lens side by hand.
  20. Remove the liftgate light.
  21. Install in the reverse order of removal.
